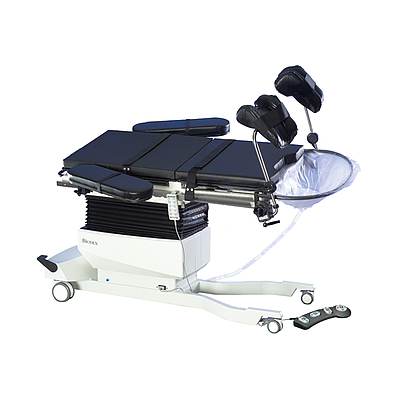

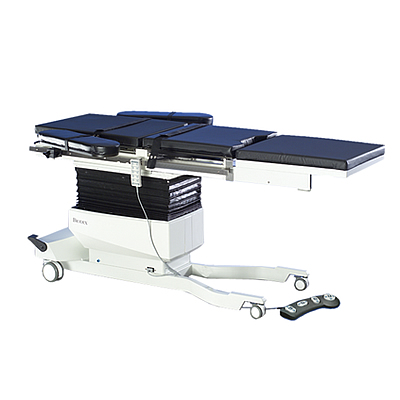

Biodex 800 Urology Table Rental

  • Hospital Grade C-Arm / Imaging Table
  • Designed For Urology
  • 5 Movements
  • 500 lb Patient Weight Capacity


Biodex C-Arm Table Brochure


Biodex 800 Urology Table Rental

The choice is yours…configure to meet your needs.

  • Large radiolucent area, 54″ x 17.5″
  • Industry exclusive Fowler positioning, 0° to 80°
  • Five-axis motorized tabletop positioning
  • Convenient positioning, hand-held and foot-operated controllers
  • Smooth starts and stops programmed into all motorized movements
  • Low profile base for C-Arm clearance
  • Accessory rails
  • Both AC and battery power are standard
Designed for Image-guided Urologic Procedures

The Urology C-Arm Table is an ideal choice for image-guided procedures. The narrow Fiberesin™ tabletop is cantilevered to accommodate portable or ceiling suspended C-Arms. Radiolucent areas are free of cross members, allowing full fluoroscopic visualization and unobstructed C-Arm positioning. Optional Cassette Tray and X-ray Grid allow for the use of overhead or portable x-ray. Functional design provides complete access while minimizing radiation exposure to clinicians.

The Rentals MD Difference:

Rentals MD offers the rentals you need quickly and cost-effectively. Our rentals are available in both short-term and long-term rental options with nationwide service. All of our rentals include costs of service and maintenance and even offer the ability to earn equity in your rental (rent-to-own). For more details simply give us a call or request a quote.

  • Dimensions: 84.5″ l x 25.5″ w (214.6 x 64.8 cm) with OR accessory rails
  • Tabletop: 53″ l x 21″ w (134.6 x 53.3 cm); 84″ l (213.4 cm) with extension
  • Lightweight Extension (For patient transfer only, not for imaging.): 26.5″ l x 21″ w (67.3 x 53.3 cm)
  • Radiolucent Extension: 31″ l x 25.5″ w (78.7 x 64.8 cm) with OR accessory rails
  • Radiolucent Area: 54″ l x 17.5″ w (137.2 x 44.5 cm)
  • Tabletop Material: Three Fiberesin™ sections – each with individual 2″ mattress
  • Table Sections: Four Sections: Adjustable Fowler positioning 0° to 80°; abdominal section with cutout; radiolucent removable extension and a lightweight non-imaging transfer extension for transferring patients on/off the table
  • Mattress: Individual, seamless, 2″ thick (5 cm), one for each section
  • Motions:
    – Height Adjustable: 34″ to 43.5″ (86.4 to 110.5 cm)
    – Tabletop X Motion (head-to-toe): 20″ (51 cm)
    – Tabletop Y Motion (side-to-side): 10″ (25.4 cm)
    – Trendelenburg: 0° to 20°
    – Reverse Trendelenburg: 0° to 20°
    – Lateral Roll: 0° to 20°
    – Fowler Positioning: Adjusts from 0° to 80° with touch handle lock/unlock
  • Controls:
    – Hand Control: activates all motions
    – Foot Control: activates all motions
  • Optional:

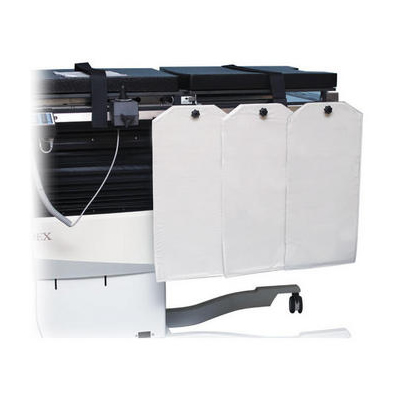

    – X-Ray Film Tray: Removable film cassette tray for 14″ x 17″ film with cassette mask for 10″ x 12″ film. Film cassette tray can be removed from either side of the table.
    – X-Ray Grid: Removable X-Ray grid, 103 line, 8:1 ratio
  • Wheels:
    – Foot End – 3″ (7.62 cm) locking swivel casters
    – Head End – 5″ (12.7 cm) swivel casters with central locking
Specifications Cont:
  • Accessory Rails: Standard OR accessory rails 1.125″ x .375″ (2.86 x .95 cm) on table (rails also on table imaging extension)
  • Patient Restraints: Two body straps, two ankle straps
  • Finish: Powder coat
  • Shipping Weight: 903 lb (409.6 kg)
  • Patient Capacity:
    In urologic position: 500 lb (227 kg)
    In use with radiolucent extension: 400 lb (181.4)
    Weight tested to four times the patient load rating.
  • Power: 115 VAC or 230 VAC and Battery. Battery automatically charges when table is plugged in. An additional battery can be charged with optional wall-mounted charger.
  • Certifications: ETL and cETL listed to UL 60601-1®, CAN/CSA© C22.2 No.: 601.1-M90, EN 60601-1, IEC 60601-1-2:2001-09
  • Warranty: Two years parts and labor

Additional information




800 Urology Table


Height Trendelenburg Lateral Tilt Longitudinal Travel Lateral Travel
