- Dimensions
- 84.5″ l x 25.5″ w (214.6 x 64.8 cm) with OR accessory rails
- Tabletop
- 53″ l x 21″ w (134.6 x 53.3 cm); 84″ l (213.4 cm) with extension
- Lightweight Extension (for patient transfer only, not for imaging.)
- 26.5″ l x 21″ w (67.3 x 53.3 cm)
- Radiolucent Extension
- 31″ l x 25.5″ w (78.7 x 64.8 cm) with OR accessory rails
- Radiolucent Area
- 54″ l x 17.5″ w (137.2 x 44.5 cm)
- Tabletop Material
- Three Fiberesin™ sections – each with individual 2″ mattress
- Table Sections
- Four Sections: Adjustable Fowler positioning 0°to 80°; abdominal section with cutout; radiolucent removable extension and a lightweight non-imaging transfer extension for transferring patients on/off the table
- Mattress
- Individual, seamless, 2″ thick (5 cm), one for each section
- Motions
- – Height Adjustable: 34″ to 43.5″ (86.4 to 110.5 cm) – Tabletop X Motion (head-to-toe): 20″ (51 cm) – Tabletop Y Motion (side-to-side): 10″ (25.4 cm) – Trendelenburg: 0° to 20° – Reverse Trendelenburg: 0° to 20° – Lateral Roll: 0° to 20° – Fowler Positioning: Adjusts from 0° to 80° with touch handle lock/unlock
- Controls
- – Hand Control: activates all motions – Foot Control: activates all motions

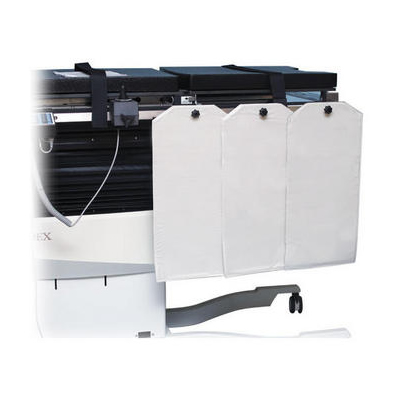

- Optional
- – X-Ray Film Tray: Removable film cassette tray for 14″ x 17″ film with cassette mask for 10″ x 12″ film. Film cassette tray can be removed from either side of the table. – X-Ray Grid: Removable X-Ray grid, 103 line, 8:1 ratio
- Wheels
- – Foot End – 3″ (7.62 cm) locking swivel casters – Head End – 5″ (12.7 cm) swivel casters with central locking
- Accessory Rails
- Standard OR accessory rails 1.125″ x .375″ (2.86 x .95 cm) on table (rails also on table imaging extension)
- Patient Restraints
- Two body straps, two ankle straps
- Finish
- Powder coat
- Shipping Weight
- 877 lb (398.6 kg)
- Patient Capacity
- – In urologic position: 500 lb (227 kg) – In use with radiolucent extension: 400 lb (181.4) – Weight tested to four times the patient load rating.
- Power
- 115 VAC or 230 VAC and battery. Battery automatically charges when table is plugged in. An additional battery can be charged with optional wall-mounted charger.
- Certifications
- ETL and cETL listed to UL 60601-1®, CAN/CSA© C22.2 No.: 601.1-M90, EN 60601-1, IEC 60601-1-2:2001-09
- Warranty
- Two years parts and labor
