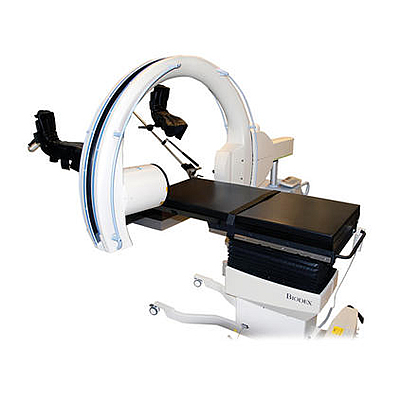

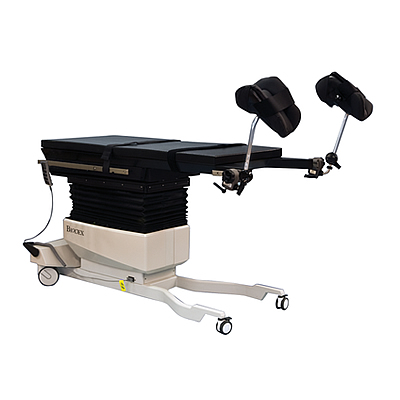

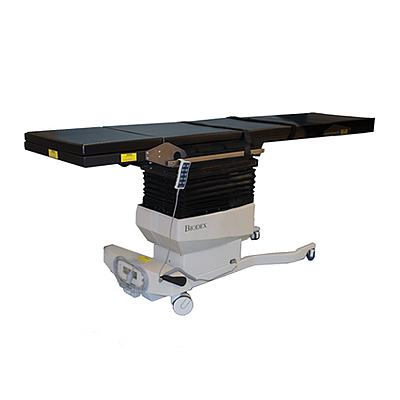

Biodex 820 3D C-Arm Table Rental

  • Hospital Grade C-Arm / Imaging Table
  • Designed For Use With 3D C-Arms
  • 5 Movements
  • 500 lb Patient Weight Capacity

Brochures:

Biodex C-Arm Table Brochure

Description

Biodex 820 3D C-Arm Table Rental

Designed to function with a 3D C-Arm.
  • Large radiolucent area, total length 51.5″
  • Five-axis motorized tabletop positioning
  • Low attenuation carbon fiber tabletop
  • Convenient positioning, hand-held and foot-operated controllers
  • Smooth starts and stops programmed into all motorized movements
  • Low profile base for C-Arm clearance
  • Exceptional platform for pelvic Brachytherapy and 3D Urology procedures
  • Ideal for 3D imaging of breast and thorax
  • Accessory rails
  • Both AC and battery power are standard

Designed and equipped for use with 3D C-Arm for seed implantation, urology, thoracic/vascular and other general C-Arm applications. The narrow, low-attenuation carbon fiber tabletop is cantilevered to accommodate portable 3D C-Arms. The functional design provides complete access with minimal radiation exposure to clinicians.

The Rentals MD Difference:

Rentals MD offers the rentals you need quickly and cost-effectively. Our rentals are available in both short-term and long-term rental options with nationwide service. All of our rentals include costs of service and maintenance and even offer the ability to earn equity in your rental (rent-to-own). For more details simply give us a call or request a quote.

Specifications:
  • Dimensions: 103.75″ l x 26″ w (264 x 66 cm) with OR accessory rails
  • Tabletop: 103.75″ l x 24″ w (264 x 61 cm) includes head and leg extension
  • Radiolucent Area:
    – 3D Imaging Area: 22.5″ l x 24″ w (57.1 x 61 cm)
    – Radiolucent Extension (Fiberesin™, non-3D): 29″ l x 22.5″ w (73.6 x 57.1 cm)
  • Total Radiolucent Area (combined): 51.5″ l (131 cm)
  • Head-End Extension (non viewable): 18.2″ l x 24″ w (46 x 51 cm)
  • Base Clearance to Floor: 1.5″ h (4 cm)
  • Tabletop Material: Carbon fiber
  • Mattress: Vinyl covered, Seamless, 2″ thick (5 cm)
  • Motions:
    – Height Adjustable: 34″ h to 44″ h (86 to 112 cm)
    – Tabletop X Motion (head to toe): 10″ (25 cm)
    – Tabletop Y Motion (side to side): 10″ (25 cm)
    – Trendelenburg: 0° to 20°
    – Reverse Trendelenburg: 0° to 20°
    – Lateral Roll: 0° to 20°
  • Controls:
    – Hand Control: Activates All Motions
    – Foot Control: Activates All Motions
  • Wheels:
    – Head End: 3″ (7.6 cm) swivel casters, integral locking system on base
    – Foot End: 5″ (12.7 cm) swivel casters with central locking
Specifications Cont:
  • Accessory Rails: Standard OR accessory rails, 1.125″ x .375″ (2.86 x .95 cm). Head-End 30″ l (75 cm); Foot-End 7.75″ l (20 cm)
  • Patient Capacity: 500 lb (227 kg); weight tested to four times the patient load rating.
  • Power: 115 VAC or 230 VAC and battery. Battery automatically charges when table is plugged in. An additional battery can be charged with optional wall-mounted charger.
  • Weight: 542 lb (246 kg)
  • Shipping Weight: 684 lb (310 kg)
  • Certifications: ETL and cETL listed to UL 60601-1, CAN/CSA® C22.2 No.: 601.1-M90, EN 60601-1 and IEC- 60601-1-2:2001-09
  • Warranty: Two years parts and labor

Additional information

Brand

Biodex

Model

820 3D C-Arm Table

Movements

Height Trendelenburg Lateral Tilt Longitudinal Travel Lateral Travel
