Biodex 840 Vascular C-Arm Table Rental

  • Hospital Grade C-Arm / Imaging Table
  • Integrated Headrest or Rectangular Top Option
  • 5 Movement Table
  • 500 lb Patient Weight Capacity

Brochures:

Biodex C-Arm Table Brochure

Description

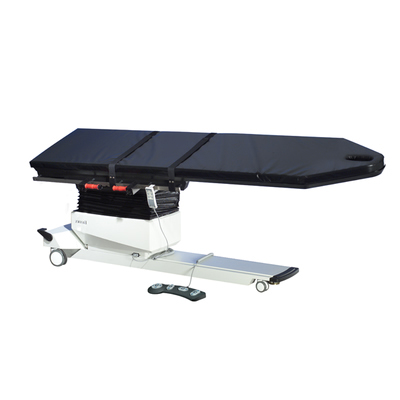

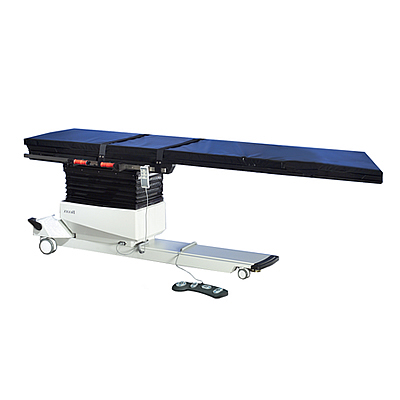

Biodex 840 Vascular C-Arm Table Rental

Stable, Accessible, Precise, Quiet, and Vibration-Free Positioning!
  • Free-float tabletop – With specially-designed SmoothGlide™ movement
  • Tabletop motion – Expansive head-to-toe, 35″
  • Radiolucent area – Extra-large, 75″
  • High-speed actuators – Assure quick tabletop positioning, height adjustability, isocentric lateral roll and Trendelenburg motions
  • Isocentric lateral roll – Maintains image center during tabletop movement, minimizing image distortion
  • Carbon fiber tabletop – Low attenuation with choice of contoured or rectangular design
  • Contoured tabletop – Features a face cutout for comfortable prone positioning
  • Mushroom shaped control – Ergonomic, for free-float motion
  • Table base – Encased in stainless steel, easy to clean
  • Hand and foot-operated controllers – Ensure quick and safe tabletop positioning
  • Patient capacity – 500 lb
  • Low profile base – For unrestricted C-arm movement
  • AC and battery power – Standard

The Surgical C-Arm Table 840 is designed for image-guided fluoroscopic procedures where stability, access, and precise, quiet, vibration-free positioning are essential. A cantilevered low attenuation carbon fiber tabletop, with choice of rectangular or contoured design, accommodates portable or ceiling-suspended C-Arms. The rectangular top offers additional space to allow for superior image quality for long-leg runoff studies. The contoured top provides ample workspace for anesthesiologists, yet the narrowness required for cervical procedures. Choose the top that best suits your needs to achieve optimum image resolution.

The extra-large, 75″ radiolucent area, free-float X-Y tabletop, motorized control of height, isocentric lateral roll, Trendelenburg motions and the catheter tray extension make the Surgical C-Arm Table – 840 ideal for cardiovascular procedures. The radiolucent area is free of cross members, allowing full fluoroscopic visualization and unobstructed C-Arm positioning. Functional design provides complete access with reduced radiation exposure to clinicians. Patient comfort and stability are assured by two-inch thick table padding and three adjustable straps with hook and loop fastening. The contoured tabletop features a face cutout for prone positioning.

The Rentals MD Difference:

Rentals MD offers the rentals you need quickly and cost-effectively. Our rentals are available in both short-term and long-term rental options with nationwide service. All of our rentals include costs of service and maintenance and even offer the ability to earn equity in your rental (rent-to-own). For more details simply give us a call or request a quote.

Specifications:
  • Dimensions:
    – Overall: 97” l x 26” w (246 x 66 cm) with OR accessory rails
    – Tabletop: 97” l x 24” w (246 x 61 cm) – choice of classic contoured or rectangular design
    – Catheter Tray Extension (removable): 18″ l x 24″ w (45.7 x 61 cm) non-radiolucent
    – Radiolucent Area:
    – 39″ l x 24″ w (99 x 61 cm) unobstructed head to float rail
    – 36″ l x 17.5″ w (91 x 44 cm) additional, between float rails
    – Radiolucent Area, Total Length: 75″ l (190 cm)
  • Tabletop Material: Carbon fiber with integral head section
  • Mattress: Seamless, 2″ thick (5 cm)
  • Attenuation:
    – Tabletop: .7 mm Aluminum equivalence
    – Mattress: .5 mm Aluminum equivalence
  • Motions:
    – Height Adjustable: 33.5″ to 43.5″ (84 to 109 cm)
    – Tabletop X Motion (head-to-toe float): 35″ (88.9 cm)
    – Tabletop Y Motion (side-to-side float): 10″ (25.4 cm)
    – Trendelenburg: 0° to 20°
    – Reverse Trendelenburg: 0° to 20°
    – Isocentric Lateral Roll: 0° to ±15°
  • Controls:
    – Hand Control: height, lateral roll and Trendelenburg motions
    – Foot Control: activates all motions (has release for float)
    – Mushroom-Top Control: releases X-Y Tabletop motions
  • Wheels:
    – Head End – 3″ (7.62 cm) swivel casters, integral locking system on base
    – Foot End – 5″ (12.7 cm) swivel casters with central locking
Specifications Cont:
  • Accessory Rails: Standard OR accessory rails 49.5″ x 1.12″ x .375″ (124 x 2.86 x .95 cm) mounted near foot end of table
  • Patient Restraints: Three body straps
  • Finish: Stainless Steel
  • Patient Capacity: 500 lb (227 kg)
  • Lift Capacity: May vary between 460 lb – 500 lb (209 – 227 kg) based on line voltage
  • Weight: 641 lb (291 kg)
  • Power: 115 VAC or 230 VAC and battery. Battery automatically charges when table is plugged in. An optional battery with separate charging unit provides continuous, cordless operation.
  • Standard Accessory: Catheter Tray Extension (removable)
  • Certifications: ETL and cETL listed to UL 60601-1®, CAN/CSA© C22.2 No.: 601.1.M90, EN 60601-1, IEC 60601-2-46 and CE marked.
  • Warranty: Two years parts and labor

Additional information

Brand

Biodex

Model

840

Movements

Height Trendelenburg Longitudinal Travel Lateral Travel Lateral Tilt
