Biodex 846 Vascular C-Arm Table Rental

  • Hospital Grade C-Arm / Imaging Table
  • Integrated Headrest or Rectangular Top Option
  • 3 Movement Table Ideal For Vascular Work
  • 500 lb Patient Weight Capacity


Biodex C-Arm Table Brochure

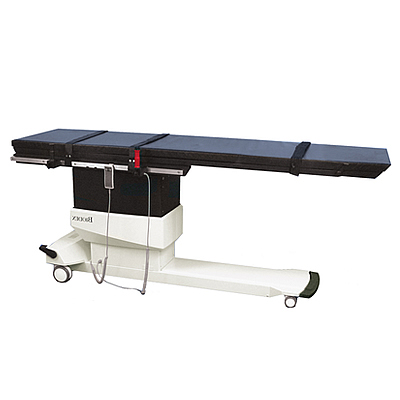

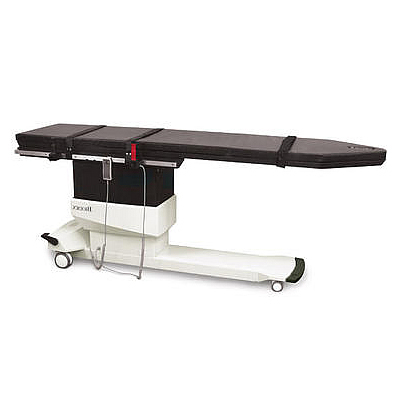

Biodex 846 Vascular C-Arm Table Rental

Free-float tabletop design with quick and comfortable patient positioning at an affordable price.
  • Low attenuation carbon fiber tabletop, with choice of standard contoured or
    rectangular design
  • Contoured tabletop features a face cutout for comfortable prone positioning
  • High-speed actuator for quick vertical movement

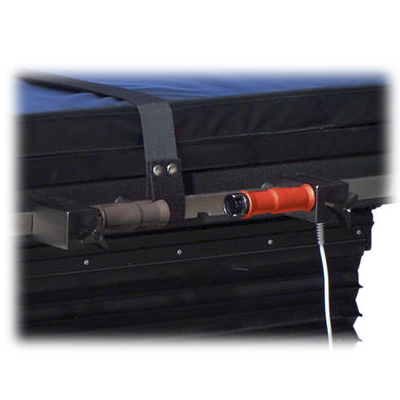

  • Convenient positioning with portable hand-held controller
  • Free-float X-Y tabletop
  • 500-lb patient capacity
  • Low profile base for C-Arm clearance
  • Accessory Rails

The Surgical C-Arm Table – 846 is designed for procedures where stability, access and precise, quiet, vibration-free positioning are essential. A cantilevered low attenuation carbon fiber tabletop, with choice of contoured or rectangular design, accommodates portable or ceiling-suspended C-Arms. The standard contoured top allows ample workspace for anesthesiologists, yet the narrowness required for cervical procedures. The rectangular top offers additional space to allow for superior image quality for long-leg runoff studies. Choose a tabletop to best fit your needs to achieve optimum image resolution.

Its large radiolucent area, motorized actuation of height, and free-float tabletop make it ideal for both pain care and cardiovascular applications. The radiolucent area is free of cross members, allowing full fluoroscopic visualization and unobstructed C-Arm positioning. Functional design provides complete access with reduced radiation exposure to clinicians. Two-inch thick table padding and three adjustable straps with hook and loop fastening assure patient comfort and stability. The contoured tabletop features a face cutout for comfortable prone positioning.

The Rentals MD Difference:

Rentals MD offers the rentals you need quickly and cost-effectively. Our rentals are available in both short-term and long-term rental options with nationwide service. All of our rentals include costs of service and maintenance and even offer the ability to earn equity in your rental (rent-to-own). For more details simply give us a call or request a quote.

  • Dimensions: 107″ l x 26″ w (272 x 66 cm) with OR accessory rails
  • Tabletop: 97″ l x 24″ w (246 x 61 cm) – choice of classic contoured or rectangular design
  • Radiolucent Area:
    – 39″ l x 24″ w (99 x 61 cm) unobstructed head to float rails
    – 36″ l x 17.5″ w (91 x 44 cm) additional, between float rails
    – 75″ l (191 cm) total length
  • Tabletop Material: Carbon Fiber with integral head section
  • Mattress: Seamless, 2″ thick (5 cm)
  • Attenuation:
    – Tabletop: .7 mm Aluminum equivalence
    – Mattress: .5 mm Aluminum equivalence
  • Motions:
    – Height: Adjustable from 32″ to 42″ (81 to 106 cm)
    – Tabletop X Motion (head-to-toe float): 35″ (89 cm)
    – Tabletop Y Motion (side-to-side float): 10″ (25.4 cm)
  • Controls:
    – Hand Control: activates height
    – Push Button: releases X-Y Tabletop motions
  • Wheels:
    – Head End – 3″ (7.62 cm) swivel casters, integral locking system on base
    – Foot End – 5″ (12.7 cm) swivel casters with central locking
Specifications Cont:
  • Accessory Rails: Standard OR accessory rails 49.5″ x 1.12″ x .375″ (124 x 2.86 x .95 cm) mounted near foot end of table
  • Patient Restraints: Three body straps
  • Patient Capacity: 500 lb (227 kg)
  • Lift Capacity: May vary between 460 lb – 500 lb (209 – 227 kg) based on line voltage
  • Finish: Stainless Steel
  • Power: 115 VAC or 230 VAC
  • Certifications: ETL and cETL listed to UL 60601-1®, CAN/CSA© C22.2
    No.: 601.1.M90, EN 60601-1, IEC 60601-2-46 and CE marked.
  • Warranty: Two years parts and labor

Additional information






Height Longitudinal Travel Lateral Travel
