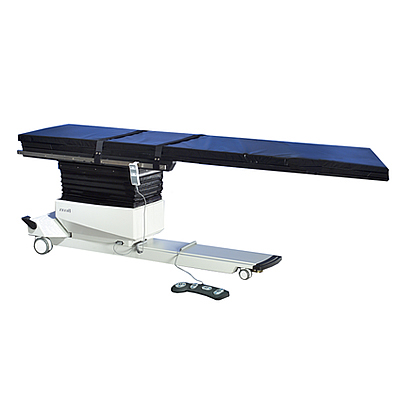

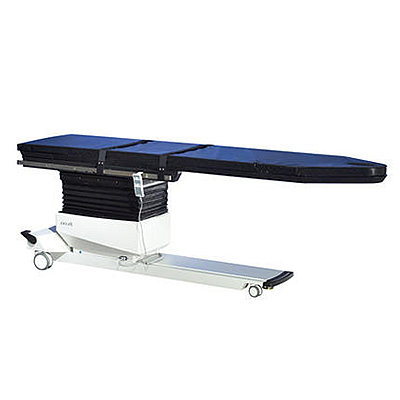

Biodex 870 C-Arm Table Rental

  • Hospital Grade C-Arm / Imaging Table
  • Two Top Options
  • 3 Movements
  • 500 lb Patient Weight Capacity


Biodex C-Arm Table Brochure


Biodex 870 C-Arm Table Rental

Innovative design optimizes patient access, increases imaging resolution and save space.
  • Low attenuation carbon fiber tabletop, with choice of standard contoured or
    rectangular design
  • Contoured tabletop features a face cutout for comfortable prone positioning
  • High-speed actuators assure quick tabletop positioning; height adjustability, lateral roll and Trendelenburg motions
  • Convenient positioning controllers
  • Smooth starts and stops programmed into all motorized movements
  • 500-lb patient capacity
  • Low profile base for C-Arm clearance
  • Accessory rails

The Pain Management C-Arm Table – 870 is designed for image-guided procedures where stability, access, and precise, quiet, vibration-free positioning are essential. A cantilevered low attenuation carbon fiber tabletop, with choice of contoured or rectangular design, accommodates portable or ceiling-suspended C-Arms. The standard contoured top allows ample workspace for anesthesiologists, yet the narrowness required for cervical procedures. The rectangular top offers additional space to allow for superior image quality for long-leg runoff studies. Choose a tabletop to best fit your needs to achieve optimum image resolution.

The large radiolucent area is free of cross members, allowing full fluoroscopic visualization and unobstructed C-Arm positioning. Functional design provides complete access with reduced radiation exposure to clinicians. Patient comfort and stability are assured by two-inch thick table padding and three adjustable straps with hook and loop fastening. The contoured tabletop features a face cutout for prone positioning.

The Rentals MD Difference:

Rentals MD offers the rentals you need quickly and cost-effectively. Our rentals are available in both short-term and long-term rental options with nationwide service. All of our rentals include costs of service and maintenance and even offer the ability to earn equity in your rental (rent-to-own). For more details simply give us a call or request a quote.

  • Dimensions: 104″ l x 26″ w (264 x 66 cm) with OR accessory rails
  • Tabletop: 97″ l x 24″ w (246 x 61 cm) – choice of classic contoured or rectangular design
  • Radiolucent Area:
    – 38.5″ l x 24″ w (99 x 61 cm) unobstructed head to accessory rail
    – 31.5″ l x 17.5″ w (80 x 44 cm) additional, between accessory rails
  • Radiolucent Area, Total Length: 70″ l (178 cm)
  • Tabletop Material: Carbon fiber with integral head section
  • Mattress: Seamless, 2″ thick (5 cm)
  • Attenuation:
    – Tabletop: .7 mm Aluminum equivalence
    – Mattress: .5 mm Aluminum equivalence
  • Motions:
    – Height Adjustable: 29.5″ to 39.5″ (75 to 100 cm)
    – Trendelenburg: 0° to 20°
    – Reverse Trendelenburg: 0° to 20°
    – Lateral Roll: 15° clockwise or counterclockwise
  • Controls:
    – Hand Control: activates height, lateral roll and Trendelenburg motions

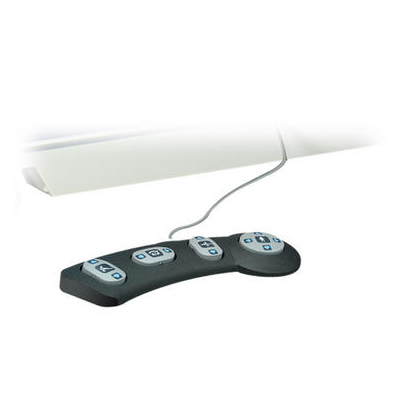

    – Foot Control (optional): activates height, lateral roll and Trendelenburg motions
  • Wheels:
    – Head End – 3″ (7.62 cm) swivel casters, integral locking system on base
    – Foot End – 5″ (12.7 cm) swivel casters with central locking
Specifications Cont:
  • Accessory Rails: Standard OR accessory rails 30″ x 1.12″ x .375″ (75 x 2.86 x .95 cm) mounted near foot end of table
  • Patient Restraints: Three body straps
  • Finish: Stainless Steel
  • Shipping Weight: 877 lb (397.8 kg)
  • Patient Capacity: 500 lb (227 kg)
  • Lift Capacity: May vary between 460 lb – 500 lb (209-227 kg) based on line voltage
  • Power: 115 VAC or 230 VAC
  • Certifications: ETL and cETL listed to UL 60601-1®, CAN/CSA© C22.2 No.: 601.1.M90, EN 60601-1, IEC 60601-1-2, IEC 60601-2-46 and CE marked.
  • Warranty: Two years parts and labor

Additional information






Height Trendelenburg Lateral Tilt
