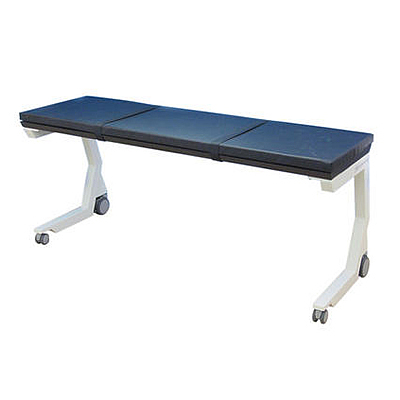

Biodex Fixed Height C-Arm Table Rental

  • Hospital Grade C-Arm / Imaging Table
  • Fixed Height
  • Unique “C” Shaped Base For C-Arm Clearance
  • 500 lb Patient Weight Capacity


Biodex C-Arm Table Brochure


Biodex Fixed Height C-Arm Table Rental

Quality built, affordably priced.
  • Extra-large low-attenuation carbon fiber tabletop
  • Unrestricted end-to-end C-Arm positioning
  • Four twin-wheel locking casters

Designed for unrestricted head-to-toe C-Arm positioning during image-guided procedures, this unit offers structural stability and manufacturing quality at an affordable price. The extra-large 80″ x 24″ carbon fiber tabletop has no cross members between the two C-shaped supports at each end of the table. This open side-cantilever design provides unobstructed end-to-end C-Arm placement for full head-to-toe fluoroscopic visualization of any size patient.

Two-inch thick table padding assures patient comfort during lengthy procedures. Adjustable straps with hook and loop fastening are provided for increased patient stability. Twin-wheel locking casters provide smooth transport and secure table positioning.

The Rentals MD Difference:

Rentals MD offers the rentals you need quickly and cost-effectively. Our rentals are available in both short-term and long-term rental options with nationwide service. All of our rentals include costs of service and maintenance and even offer the ability to earn equity in your rental (rent-to-own). For more details simply give us a call or request a quote.

  • Dimensions: 82″ l x 29.5″ w x 35″ h (209 x 75 x 89 cm)
    – Tabletop: 80″ l x 24″ w (203 x 61 cm)
    – Radiolucent Area: 75″ l x 24″ w ( 191 x 61 cm)
  • Tabletop Material: Carbon fiber
  • Mattress: 2″ thick (5 cm)
  • Attenuation:
    – Tabletop: 1 mm Aluminum equivalence
    – Mattress: .5 mm Aluminum equivalence
Specifications Cont:
  • Wheels:
    – Front – 5″ (12.7 cm) locking twin-wheel casters
    – Rear – 3″ (7.62 cm) locking twin-wheel casters
  • Patient Restraints: two body strapsFinish: Powder coat
  • Patient Capacity: 500 lb (227 kg); weight tested to four times the patient load rating.
  • Weight: 125 lb (57 kg)
  • Warranty: Two years parts and labor

Additional information




Fixed Height 056-025
