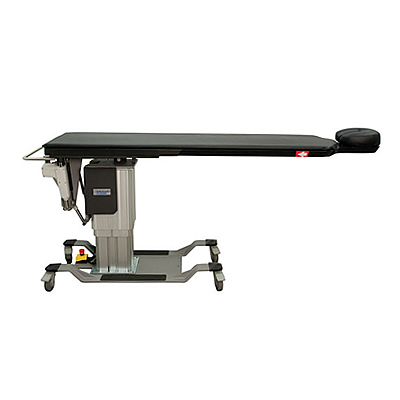

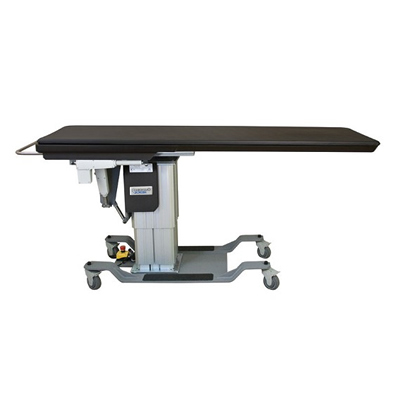

Oakworks CFPM301 C-Arm Table Rental

  • Industry’s Largest Adjustable Height Range of 26″- 44″
  • 56″ Metal Free Imaging Space
  • Integrated Headrest or Rectangular Top Option
  • Cost Effective 3 Movement Table
  • 500 lb Patient Weight Capacity


Oakworks CFPM301 C-Arm Table Brochure



Oakworks CFPM301 C-Arm Table Rental

The Oakworks CFPM301 takes the popular Oakworks CFPM300 and instead of lateral tilt replaces it with longitudinal travel. This is ideal for centers that don’t use or need lateral tilt for the procedures being performed but would like some head to toe movement without having to move the c-arm.

The Rentals MD Difference:

Rentals MD offers the rentals you need quickly and cost-effectively. Our rentals are available in both short-term and long-term rental options with nationwide service. All of our rentals include costs of service and maintenance and even offer the ability to earn equity in your rental (rent-to-own). For more details simply give us a call or request a quote.

Imaging Features:
  • Carbon Fiber Top – 56 in. Metal free imaging space
  • Top Dimensions – 22 in. (56cm) wide x 84 in. (214cm) long – Integrated Headrest Version
  • Top Dimensions – 24 in. (61cm) wide x 80 in. (203cm) long – Rectangular Top Version
  • Motion 1 Electric Height Range 26 in. – 44 in. (66-112cm)
  • Motion 2 Electric Trendelenburg tilt 15°/-11°
  • Motion 3 Electric Longitudinal travel 10 in. (25cm)
  • Controls – Multi-function hand control
  • Weight Capacity – 500 lb (227kg)
  • Product Weight – 475 lb (216kg)
  • Included Features – 1 in. (3cm) Radiolucent Comfort Foam™ table top pad, 4 in. (10cm) locking casters, Crescent face rest pad (included with integrated headrest top), patient safety straps (2)
  • Warranty – 3 years parts, 2 years labor
  • Safety Listings – CE marked, cETLus approved, CB Certificate
Optional Features:
  • Multi-function Foot Control (75074)
  • 2 in. (5cm) Table Top Pad Upgrade (73190-T01) – Upgrade from the standard 1 in. (3cm) pad
  • 5 in. (13cm) casters (65427) – Upgrade from the standard 4 in. (10cm)
  • Arm Hammock (48751-T01) – Use with Integrated Head Rest Top
  • Carbon Fiber Arm Board 6 in. wide (42585) – 180º Articulation
  • Carbon Fiber Arm Board 7.5 in. wide 70337) – 180º Articulation
  • Fluoro Extender (33975) – Polycarbonate
  • Interventional Supine Pillow System (69808-T01) – Contoured pad and support wedge pad
  • Spine Positioning System II (70100-T01) – 8 piece system
  • T-rail Clamp (63336 ) – 6 in. (15cm) long rail

Additional information






Height Trendelenburg Longitudinal Travel
