Like the Oakworks CFPM400 the CFPM401 offers (4) electric movements which include: height, trendelenburg, longitudinal travel, but replaces the lateral tilt with lateral travel instead. All Oakworks c-arm/imaging tables are built in the USA and are backed by an industry leading 3 year warranty.
Oakworks

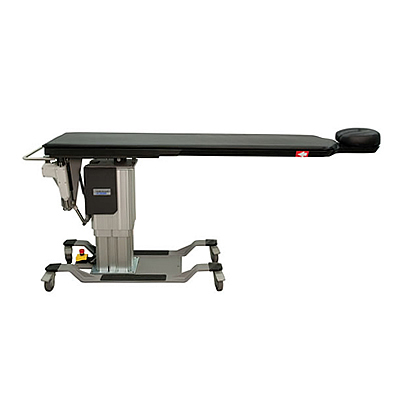

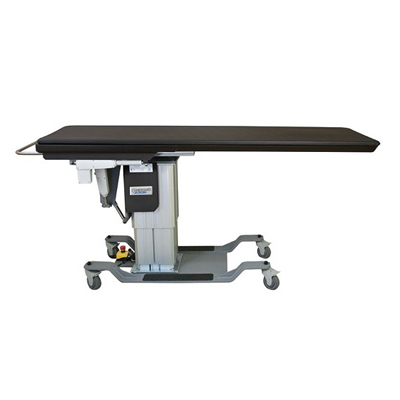

Oakworks CFPM401 C-Arm Table Rental
Like the Oakworks CFPM400 the CFPM401 offers (4) electric movements which include: height, trendelenburg, longitudinal travel, but replaces the lateral tilt with lateral travel instead. All Oakworks c-arm/imaging tables are built in the USA and are backed by an industry leading 3 year warranty.
- Industry’s Largest Adjustable Height Range of 26″- 44″
- 56″ Metal Free Imaging Space
- Integrated Headrest or Rectangular Top Option
- Cost Effective 4 Movement Table
- 500 lb Patient Weight Capacity
Request a Rental Quote
Minimum rental term: 1 month
Product details
- Carbon Fiber Top – 56 in. Metal free imaging space
- Top Dimensions – 22 in. (56cm) wide x 84 in. (214cm) long – Integrated Headrest Version
- Top Dimensions – Rectangular 24 in. (61cm) wide x 80 in. (203cm) long – Rectangular Top Version
- Motion 1 – Electric Height Range 26 in. – 44 in. (66-112cm)
- Motion 2 – Electric Trendelenburg tilt 15°/-11°
- Motion 3 – Electric Longitudinal travel 10 in. (25cm)
- Motion 4 – Electric Lateral travel ±4 in. (10cm)
- Controls – Multi-function hand control
- Weight Capacity – 500 lb (227kg)
- Product Weight – 475 lb (216kg)
- Included Features – 1in. (3cm) Radiolucent Comfort Foam™ table top pad, 4in. (10cm) locking casters, Crescent face rest pad (included with integrated headrest top), patient safety straps (2)
- Warranty – 3 years parts, 2 years labor
- Safety Listings – CE marked, cETLus approved, CB Certificate
- Multi-function Foot Control (75074)
- 2 in. (5cm) Table Top Pad Upgrade (73190-T01) – Upgrade from the standard 1 in. (3cm) pad
- 5 in. (13cm) casters (65427) – Upgrade from the standard 4 in. (10cm)
- Arm Hammock (48751-T01) – Use with Integrated Head Rest Top
- Carbon Fiber Arm Board 6 in. wide (42585) – 180º Articulation
- Carbon Fiber Arm Board 7.5 in. wide 70337) – 180º Articulation
- Fluoro Extender (33975) – Polycarbonate
- Interventional Supine Pillow System (69808-T01) – Contoured pad and support wedge pad
- Spine Positioning System II (70100-T01) – 8 piece system
- T-rail Clamp (63336 ) – 6 in. (15cm) long rail
