Oakworks DTPM300 C-Arm Table Rental

  • 2 Tower Lift Design
  • 40″ Open Space Between Towers
  • 23″ Longitudinal Travel


Oakworks DTPM C-Arm Table Brochure

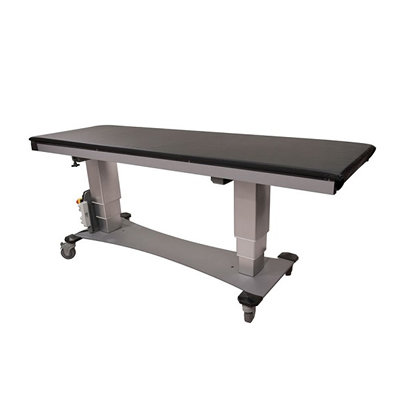

Oakworks DTPM300 C-Arm Table Rental

The Oakworks DTPM300 rental is a dual post style c-arm/imaging table that is the least expensive (3) movement table on the market. While the (2) post design is not as desirable as the “diving board” style Oakworks adds in longitudinal travel to make up for the second post. Instead of panning the c-arm, simply slide the table head to toe instead. The also offers height adjustments and Trendelenburg movements. This table is ideal for any new practice that is just starting out and has tight budget constraints.

The Rentals MD Difference:

Rentals MD offers the rentals you need quickly and cost-effectively. Our rentals are available in both short-term and long-term rental options with nationwide service. All of our rentals include costs of service and maintenance and even offer the ability to earn equity in your rental (rent-to-own). For more details simply give us a call or request a quote.

Included Features:
  • Polycarbonate Top – Rectangular 24 in. (61cm) wide x 78 in. (198cm) long
  • Motion 1 – Electric Height Range 24 in. – 40 in. (61-102cm)
  • Motion 2 – Electric Trendelenburg tilt 14° / -14°
  • Motion 3 – Manual Longitudinal travel 23 in. (58cm)
  • Controls – Foot control (height) & hand control (height & trendelenburg)
  • Weight Capacity – 450 lb (204kg)
  • Product Weight – 390 lb (177kg)
  • Included Features – 1 in. (3cm) Radiolucent Comfort Foam™ table top pad, 4 in. (10cm) locking casters, patient safety straps (2)
  • Warranty – 3 years parts, 2 years labor
  • Safety Listings – CE marked, cETLus approved, CB Certificate
Optional Features:
  • 2 in. (5cm) Table Top Pad Upgrade (73190-T01) – Upgrade from the standard 1 in. (3cm) pad
  • 5 in. (13cm) casters (65427) – Upgrade from the standard 4 in. (10cm)
  • Fixed T-Rail (73148) – 78 in. long (198cm)
  • Fixed T-Rail (73135) – Custom Length)

Additional information






Height Trendelenburg Longitudinal Travel
