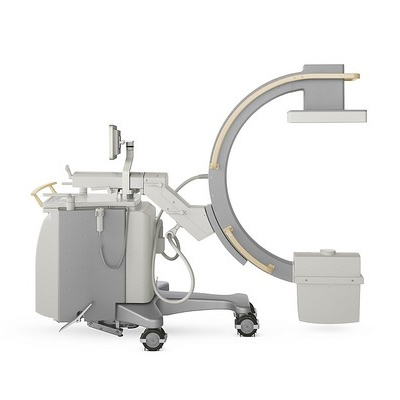

With its optimized C-arc geometry, Flat Detector imaging technology and advanced radiation dose settings, Philips Veradius Neo helps you take the next step in excellence allowing you to carry out complex procedures with confidence and control.
- Excellence in orthopedic imaging means less effort to position and easy access to obese patients via optimized C-arc design. • Excellence in cardiovascular imaging means brilliant visualization of small catheters or stents in endovascular procedures thanks to cutting edge Flat Detector technology. • Excellence in radiation dose means freedom to reach the desired image quality using excellent radiation dose efficiency.
X-Ray Generation:
X-ray tube: Rotating Anode tube
X-ray generator: Monoblock 80 kHz high frequency generator
Maximum generator output: 15 kW
Geometry:
C-arc: color-coded, fully balanced
Angulation: 90 ° / – 45 ° °
C-arm depth: 73 cm (29″)
Source Image Distance: 99.3 cm (39″)
Lowest lateral working position: 93.2 cm (37″)
Flat detector:
Type: Trixell amorphous silicon detector
Active Detector Area: 26.2 cm x 26.2 cm (10.3″ x 10.3″)
Matrix size: 1560 x 1420 pixels
Pixel pitch: 184 µm
Dynamic range: 103 dB (16 bit) dB
WLAN: Optional
