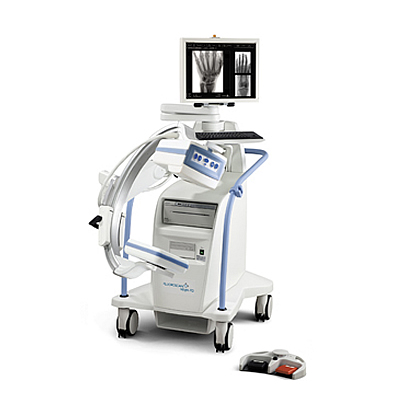

Hologic Insight FD C-Arm Rental

  • Third Generation Hologic C-Arm System
  • 1k x 1k Pixel Image Resolution
  • Flat Detector For Premium Image Quality

Brochures:

Hologic Insight FD Mini C-Arm Brochure

Description

Hologic Insight FD C-Arm Rental

The Next Generation in Mini C-arm Imaging

The new Fluoroscan® InSight-FD mini C-arm system with fl at detector technology offers thin profi le and improved workspace access while providing ease of positioning for a more comfortable patient experience. Designed specifically for orthopedic and other extremity surgeons, the new Fluoroscan InSight-FD features an exclusive rotating detector* and collimator to improve surgical area positioning, making it the perfect device for today’s busy surgeon.

Its new ergonomic C-arm design and forward tube source offer unmatched arch depth for greater flexibility and the system’s full 120 degrees range of motion, both forward and back, provides improved maneuverability and precision.

The Rentals MD Difference:

Rentals MD offers the rentals you need quickly and cost-effectively. Our rentals are available in both short-term and long-term rental options with nationwide service. All of our rentals include costs of service and maintenance and even offer the ability to earn equity in your rental (rent-to-own). For more details simply give us a call or request a quote.

Product Specifications

X-ray Source
  • Grounded Anode X-ray Tube
  • 7.5 W High Frequency
  • Maximum Output: 0.1 mA @75 kVp
  • Focal Spot Size: 0.045 mm
  • Tube kVp Range: 40 to 75 kVp (max)
  • Beam Current: 0.020 to 0.100 mA
Image Receptor
  • CMOS Flat Detector
  • Dual Mode – Full and Limited
  • 75 Micron Pixel Array
  • 2k x 1.5k Resolution
    – Full Field: 5.7″ x 4.5″ (14.5 x 11.5 cm)
    – Limited Field: 4.4″ Square (11 cm)
    – Limited Field: Reduced Dose Mode
Detector Rotation*
  • Full /- 90 Degree Rotation
  • Auto Tracking Collimation
  • Touch-Screen Monitor
  • HD 1600 x 1200 Display
  • 20″ LCD Flat Panel
  • Extendable with 350° Swivel
  • Digital DICOM Compliant
Monitor Image
  • 16 bit Image Processing
  • 1k x 1k
Power Failure Protection
  • Images Software Protected
X-ray Control Modes
  • Auto IQ Mode
  • Auto Mode
  • Manual Mode
C-arm
  • Depth: 20″ (50.6 cm)
  • Free Space: 14″ (36 cm)
  • Orbital Rotation: 120°
  • Horizontal Travel: 23°
  • Vertical Travel: 23″ (58 cm)
  • Pivot Rotation: 380°
  • Panning Motion: 320°
Image Storage
  • Permanent Hard Drive:
    8,000 Images Capacity
Removable Data Storage
  • USB Port
  • CD/DVD-RAM Drive
Operating System
  • Microsoft® Windows XP
Image Acquisition
  • 30 Frames/sec (max)
  • Cine Video Recording
Imaging Modes
  • Snapshot – Single Shot
  • Continuous – Fluoroscopy
  • Digital Recorded Fluoro (Cine)
  • Frame Averaging:
    – Ultra/Auto
    – High/Med/ Low/ Off
    – Selectable & Configurable
Radiation Report
  • DAP (Dose Area Product)
  • Paper Print and DICOM Send
Laser Alignment Light
  • On-off or 60 sec Timed
  • IEC Class 1C
Imaging Features
  • Automated Image Processing
  • Auto Real-Time Noise Reduction
  • Auto Edge Enhancement
  • Auto-Dose Control
  • Magnify-Zoom-Pan
  • Brightness/Contrast Control
  • Physician Preference Configurable
Footswitch Options
  • Wired Triple Function Footswitch
  • Wireless Triple Function Infrared
  • Configurable Save/Tag
Printer Option
  • Small Format Thermal Printer
  • Large B/W Hybrid Graphic Printer
  • Multi-format Prints
DICOM Option
  • Modality Worklist
  • Print
  • Store
  • Storage Commitment
Connectivity
  • Ethernet Wired
  • Wireless (Optional)
Dimensions
  • H: 66″ (168 cm)
  • W: 28″ (71 cm)
  • D: 32″ (81 cm)
Space Allocation
  • 5′ x 6.6′ (1.5 m x 2 m)
  • Door Size: 30” Minimum
Power Requirements
  • 100, 120, 220, 240 VAC Selectable
  • 50/60 Hz Input; 750 W (max)

Additional information

Brand

Hologic

Model

Insight FD

C-Arm Size

Mini – 1pc – C on Monitor Cart
