Orthoscan DI Mini C-Arm Rental

  • kV Range: 40 – 78kVp
  • mA Range: 0.04 – 0.160mA
  • Flat Detector
  • 2 k x 1.5 k Image Resolution
  • 15.0 cm x 12.0 cm Field Of View

Brochures:

Orthoscan DI Mini C-Arm Brochure

Description

Orthoscan DI Mini C-Arm Rental

Mobile DI is the ideal mini c-arm for your clinical and off-site or remote access extremity imaging needs. This portable x-ray and fluoroscopic device offers a range of connectivity options for your electronic management records and produces excellent digital image quality.

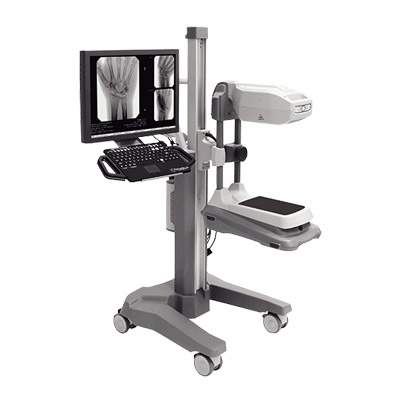

Improved Mobile Accessory Cart

A new articulating mid-mount monitor arm, with increased vertical and horizontal motion, allows for optimal positioning of the display while seated or standing. A redesigned keyboard tray includes conveniently located side-mounted handles for easy manipulation.

Benefits in the Office
  • Secondary Image Source-Reduces patient wait times
  • Potential Revenue Source

    -Established CPT codes
    -Digital x-ray and fluoroscopy

  • Patient Benefits
    -Patients enjoy viewing images in real-time
    -Bring imaging to immobile patients
Portable & Lightweight

OrthoScan Mobile DI offers ease of movement between exam rooms, satellite clinics, urgent care centers, emergency departments, athletic team venues, and military units. Weighing approximately 35 pounds, Mobile DI introduces versatility to orthopaedic imaging. At 12″ by 19 ″, Mobile DI possesses the smallest footprint on the market for mini c-arms.

Imaging Flexibility

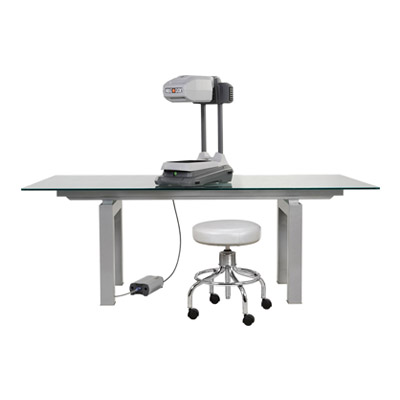

Mobile DI provides easy access to shoulder images as well as weight-bearing knee and foot views. The Mobile DI mini c-arm can be placed on a table top, or mounted on the accessory cart enabling Mobile DI to move easily between rooms. The accessory cart also provides orbital c-arm rotation needed for shoulder and knee views.

Additional Procedures

Mobile DI allows for additional procedures in the office, improved workflow, and patient satisfaction. Benefits include reductions in patient lead times and established CPT codes for increased reimbursement.

  • Motion studies
  • Weight-bearing views
  • Joint stability tests
  • Shallow pin removals
  • Fluoroscopic needle guidance
  • Stress views
  • Dynamic views
  • Unorthodox views
  • Closed reductions
  • Arthrography
Flat Detector Technology

Flat detectors provide increased image quality, improved reliability, and more efficient imaging. Compared to image intensifiers, the flat detector’s more direct signal conversion path, with essentially no optics, results in uniform image brightness and less geometric distortion. The solid state detector provides more reliability and no image degradation due to vacuum leaks. Lastly, flat detectors read more of the individual x-rays, translating into better image quality for a given dose.

The Rentals MD Difference:

Rentals MD offers the rentals you need quickly and cost-effectively. Our rentals are available in both short-term and long-term rental options with nationwide service. All of our rentals include costs of service and maintenance and even offer the ability to earn equity in your rental (rent-to-own). For more details simply give us a call or request a quote.

Product Specifications

DETECTOR

  • Detector Resolution: 2 k x 1.5 k
  • Detector Size: Detector Size
  • Useful Array: 15.0 cm x 12.0 cm
  • Pixel Spacing: 75 microns
  • Dose Rate: AKR, DAP

X-RAY MONOBLOCK

  • Focal Spot: 50 microns
  • kV Range: 40 – 78 kVp
  • mA Range: 0.04 – 0.160 mA

DOCUMENTATION

  • Wireless Communication: Capable
  • DICOM 3.0 Compliant: Yes
  • MPPS: Capable
  • Image Capacity: 12,000
  • Video Capacity: 90 min
  • EMR Image Link: Capable
  • Cine Loop Export: Yes
  • USB 2.0 Ports: 2
  • Printer Options: 2

IMAGING

  • Weight-Bearing Foot Bench: Optional
  • Field Controls:Yes
  • Start Up Time: 30 sec
  • Temporary Image Hold: 512 images
  • Cine Loop Frame Rate: 30 fps
  • Snapshot Capabilities: Yes
  • Edge Enhancement: Yes
  • Post Process Brightness/Contrast: Yes
  • Adaptive Noise Suppression: Automatic
  • Manual Noise Suppression: 4 Modes
  • Laser Alignment: Yes
  • Wired Hand or Foot Switch: Capable

DISPLAY

  • Non Surgical Monitor: 20.1″ LCD
  • Non-Diagnostic Tablet: Optional
  • Video Output: Yes

SOFTWARE

  • Operating System: Windows 7 Embedded

MOBILE DI DIMENSIONS

  • Weight: 35 lbs
  • Height: 25″
  • Footprint (W x L): 12 x 19″
  • Free Space: 13.8″

ACCESSORY CART DIMENSIONS

  • Weight: 96 lbs
  • Height: 66″
  • Footprint (W x L): 24 x 39″

Additional information

Brand

Orthoscan

Model

DI

C-Arm Size

Mini – 1pc – C on Monitor Cart
