- Third Generation OEC C-Arm System
- Rotating Anode X-Ray Tube
- 512 px x 512 px Image Resolution
- Digital CCD Camera
- 9″ and 12″ Image Intensifier Options
- Standard “C” and Super “C” Options
Brochures:
GE OEC 9600 Brochure
GE OEC 9600 C-Arm Rental
Description
GE OEC 9600 C-Arm Rental

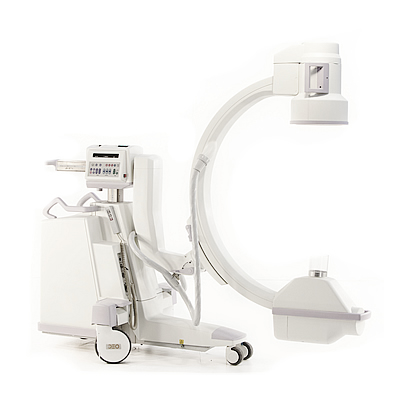

The GE OEC 9600 was the first system to introduce digital CCD Camera to the marketplace.
The GE OEC 9600 c-arm system builds off the popular OEC 9400 c-arm and improves it by offering an increased resolution via its all-new digital CCD camera compared to the 9400s analog system and a more modern Image Intensifier design that was carried over on to the 9800 and 9900 c-arm systems. The c-arm was manufactured from 1994 to 1999. We recommend the refurbished 9600 c-arm for startups or low caseload facilities that need a simple machine at a lower cost.
The Rentals MD Difference:
Rentals MD offers the rentals you need quickly and cost-effectively. Our rentals are available in both short-term and long-term rental options with nationwide service. All of our rentals include costs of service and maintenance and even offer the ability to earn equity in your rental (rent-to-own). For more details simply give us a call or request a quote.
Product Specifications
X-Ray System:
Generator:
- High frequency
- 4.0 kW full-wave
- Up to 120 kVp
- Up to 75 mA for radiographic film exposures
- Continuous fluoro boost mode up to 12 mA (optional)
- Pulsed fluoro mode
- Pulsed fluorography mode up to 40 mA (optional)
- Full power from outlet:
– 50 Hz or 60 Hz
– 100V-15A to 240V-8A - Patented energy buffer design
X-Ray Tube:
- Rotating anode X-ray tube
- Focal spots: 0.3 mm and 0.6 mm
- Anode heat capacity: 300,000 HU
- Anode cooling rate: 60,000 HU/min
- Housing heat capacity: 1,600,000 HU
- Anode diameter: 3.1 in.
- Anode angle:
– 8.5 in. (9-inch Image Intensifier)
– 10 in. (12-inch Image Intensifier) - X-ray tube cooling fan (Vascular, Neurovascular & Cardiac units)
Digital Image Rotation:
- Digitally adjusts image display
- Image update
-Image rotation
-Image reversal (side-to-side)
-Image invert (top-to-bottom) - Image positioning without additional exposure
Collimator:
- Iris collimation with dual opposing semi-transparent shutters allow elliptical, round and rectangular collimation
- Iris and shutters are continuously variable
- All functions remotely controlled from the C-Arm control panel
Fluoroscopy Mode:
- Focal spot: 0.3 mm
- kVp range: 40 – 120 kVp
- mA range: 0.2 – 5.0 mA normal mode
- mA range: 1.0 – 12 mA continuous fluoro boost mode
- Auto and manual modes
- Continuous, one-shot or pulsed operation
- ABS varies mA, kVp and came
Pulsed Fluoro Mode (optional):
Standard with the Expanded Surgical Platform (ESP) and higher configurations:
- Focal spot: 0.3 mm
- kVp range: 40 – 120 kVp
- mA range: 0.2 – 40.0 mA
- Pulse rate: 1, 2, 4, or 8 pulses per second
- Pulse width: 30 or 50 milliseconds
- Computer controlled ABS, mA, kVp and camera gain
Digital Spot Mode (optional):
Standard with the Expanded Surgical Platform (ESP) and higher configurations:
- Enhanced digital fluorographic one shot with 12 mA boost
- Automatically terminates exposure and stores enhanced image to storage archival disk
Radiographic Mode:
- Focal spot: 0.3 mm or 0.6 mm
- Focal spot automatically selected
- 0.3 mm – mAs range: 1 – 100 mAs
- 0.6 mm – mAs range: 110
Video Imaging System:
9″ Image Intensifier:
- Tri-mode 9/ 6/ 4.5 in. image intensifier
- Minimum central resolution (at the monitor):
– 9 in.: 1.4 lp/mm
– 6 in.: 2.0 lp/mm
– 4.5 in.: 2.4 lp/mm - DQE: 65% (typical)
12″ Image Intensifier:
- Tri-mode 12/ 9/ 6 in. image intensifier
- Minimum central resolution (at the monitor):
– 12 in.: 1.0 lp/mm
– 9 in.: 1.3 lp/mm
– 6 in.: 1.6 lp/mm - DQE: 65% (typical)
Video Camera:
- High resolution CCD camera
- Full frame capture
- 360° motorized rotation
- On-screen orientation indicator (realtime feedback without fluoro)
- Left-right image reversal
- Top-bottom image reversal
- Negative mode
- Video signal: Standard RS 170A 60 Hz, 525 lines
- Aspect ratio: 4:3
- Computer controlled features:
– Gain
– Blanking
– Camera iris
Video Display (OEM Factory):
- Dual 16 in square, black etched, anti-glare, anti-static
- 525 lines/frame – 512 pixels
- Ambient room light sensor
- Multi-LED X-ray “ON” indicator
- Remote window/level controls
Video Display (Upgraded Retrofit Kit):
- 32″ LED Lit LCD Display With Dual Screen Capabilities
- Anti-glare, progressive full frame scan monitor
- 2 Mega Pixel high-resolution output
- Ambient room-light compensation
Configurations:
GSP (General Surgical Package) Platform:
ESP (Expanded Surgical Package) Platform:
Basic Vascular Platform:
Vascular Platform:
Neuro-Vascular Platform:
Additional Features:
Super-C Configuration:
Not Available With 12” Image Intensifier
- Adds Extra 7” Of Depth To Arc Of C-Arm
- Allows 148 Degrees Of Orbital Rotation
Hardcopy Options:
- Thermal printer
- External DICOM box
- Image Capture Device
- Laser aiming device (optional)
Electrical:
- Input power (69Hz ir 50Hz)
-100v @ 20 A (Japan)
-120V @ 12 A
-200V, 220V, 230V, 240V @ 10 A
Regulatory Compliance:
- U.S. 21 CFR Subchapter K
- NFPA 99
- UL 60601-A (CSA/NRTL)
- IEC60601-1 (plus relevant collateral and particular standards)
Physical Specifications
C-Arm Dimensions:
- Height: 68 / 86 in (1734 / 2191 mm)
- Width: 33 in (838 mm)
- Length: 78 in (1994 mm)
- Weight: 720 lbs.
Workstation Dimensions:
- Height: 64 in (1632 mm)
- Width: 27 in (692 mm)
- Depth: 27 in (692 mm)
- Weight: 430 lbs.
Additional information
| Brand | GE OEC |
|---|---|
| Model | 9600 |
| C-Arm Size | Full Size – 2pc C-Arm & Monitor Cart |
