- Second Generation OEC C-Arm System
- Rotating Anode X-Ray Tube
- 512 px x 512 px Image Resolution
- Analog Camera
- 9″ Dual Mode Image Intensifier
Brochures:
GE OEC 9400 Brochure
GE OEC 9400 C-Arm Rental
Description

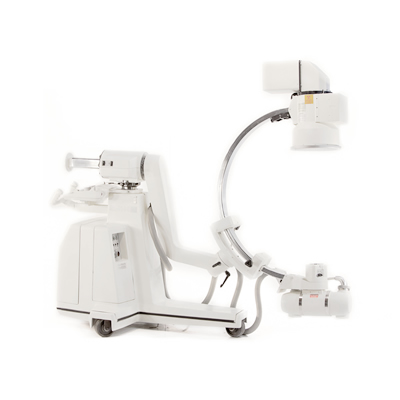

GE OEC 9400 C-Arm Rental
NOTE: This product is no longer offered for sale and is only listed for informational and comparison purposes and is considered end of life.
The Rentals MD Difference:
Rentals MD offers the rentals you need quickly and cost-effectively. Our rentals are available in both short-term and long-term rental options with nationwide service. All of our rentals include costs of service and maintenance and even offer the ability to earn equity in your rental (rent-to-own). For more details simply give us a call or request a quote.
Product Specifications
X-Ray System:
Generator:
- 2.5 kHz High frequency
- 6.0 kW Full-wave
- Up to 120 kVp
- Up to 100 mA for radiographic film exposures
- Fluoro boost mode up to 20 mA (optional)
- Pulsed fluoro mode
- Pulsed fluorography mode up to 60 mA (optional)
- Full power from outlet:
– 50 Hz or 60 Hz
– 100V-15A to 240V-12A
X-Ray Tube:
- Rotating anode X-ray tube
- Focal spots: 0.3 mm and 0.1 mm
- Anode heat capacity: 300,000 HU
- Anode cooling rate: 70,000 HU/min
- Housing heat capacity: 1,250,000 HU Collimator
Collimator:
- Dual leaf collimation
- Minimum beam size < 5 X 5 cm2
- Leaves are continuously variable
- Remotely controlled from the C-Arm control panel Fluoroscopy Mode
Fluoroscopy Mode:
- Focal spot: 0.3 mm
- kVp range: 40 – 120 kVp
- mA range: 0.2 – 5.0 mA normal mode
- mA range: Up to 20 mA boost mode (optional)
- Auto, manual and pulsed modes
- Continuous or One-Shot operation
- ABS varies mA, kVp and camera gain
- User specific ABS tables
Pulsed Fluoroscopy Mode (optional):
- Focal spot: 0.3 mm
- kVp range: 40 – 120 kVp
- mA range: 0.2 – 5.0 mA
- Pulse rate: 1, 2, 4, or 8 pulses per second
- Pulse width: 30 or 50 milliseconds
- Computer controlled ABS, mA, kVp and camera gain
Pulsed Fluorography Mode (optional):
- Focal spot: 0.3 mm
- kVp range: 40 – 120 kVp
- mA range: Up to 60 mA
- Pulse rate: 1, 2, 4, or 8 pulses per second
- Pulse width: 35 or 50 millisecondsRadiographic Mode
Radiographic Mode:
- Focal spot: 0.3 mm or 1.0 mm
- Focal spot automatically selected
- 0.3 mm – mAs range: 1 – 100 mAs
- 1.0 mm – mAs range: 100 – 3
Video Imaging System:
6 in Image Intensifier:
- Single-mode 6 in image intensifier
– 6 in.: 1.4 lp/mm - DQE: 65% (typical) 9 in Image Intensifier (optional)
9 in Image Intensifier (optional):
- Tri-mode 9 in / 6 in / 4.5 in image intensifier
– 9 in.: 2.3 lp/mm
– 6 in.: 3.2 lp/mm
– 4.5 in.: 3.8 lp/mm - DQE: 65% (typical)
Video Camera:
- Vidicon Image Tube
- 525 lines/frame
- 360˚ motorized rotation
- On-screen orientation indicator (realtime feedback without fluoro)
- Left-right image reversal
- Top-bottom image reversal
- 256 shades of gray
Video Monitors:
- Dual 17 in. Ultrabrite anti-glare monitors
- Ambient room light sensor
- Remote brightness/contrast controls
Additional Features:
Hardcopy Options:
- Thermal printer
- External DICOM box
- Image Capture Device
C-Arm Dimensions:
- Height: 66 in. / 83 in. (1681 / 2120 mm)
- Width: 34 in. (864 mm)
- Length: 74.5 in. (1892 mm)
- Weight: 740 lbs
Workstation Dimensions:
- Height: 65 in. (1651 mm)
- Width: 32 in. (813 mm)
- Depth: 28 in (710 mm)
- Weight: 360 lbs.
Additional information
| Brand | GE OEC |
|---|---|
| Model | 9400 |
| C-Arm Size | Full Size – 2pc C-Arm & Monitor Cart |
