Description

Ziehm Vision R C-Arm Rental

Ziehm Vision R is the perfect choice for demanding procedures in neurosurgery, vascular surgery and cardiac applications. The powerful monoblock generator with rotating anode delivers up to 20 kW power, enabling Ziehm Vision R to produce high-quality images with minimal dose exposure. This high-frequency pulse generator operates with a variable pulse width between 4 ms and 40 ms. It also comes with a unique liquid cooling system (Advanced Active Cooling) and is specially designed for extended use in operating theaters. Ziehm Vision R features two 19″ flatscreen monitors, which clearly visualize the smallest anatomical details even from a distance or at an angle.

Ziehm Vision Highlights:
  • Generator technology: Powerful 20 kW monoblock generator with rotating anode for optimal image quality
  • Short, sharp pulses (up to 30 frames per second) for crystal-clear images even during significant anatomical movement
  • Advanced Active Cooling for optimal generator temperature during challenging procedures
  • Endoscopic monitor displays fluoroscopic and color endoscopy images in parallel (optional)
  • Removable grid for dose reduction can be mounted to the image intensifier at any time with just one click
Ziehm Vision Ease of Use:
  • Dedicated SmartVascular software improves workflow in vascular procedures
  • Intuitive use with SmartEye technology
  • Synchronized touchscreen user interfaces (Ziehm Vision Center) on C-arm and monitor cart
  • Steer and brake functions activated via a single lever (EasyDrive system)
  • Color levers allow staff to quickly identify desired movement (optional)
Ziehm Vision Image quality:
  • 1k x 1k image matrix for high resolution
  • Over 4,000 shades of gray
  • PreMag (preview function) for quick, radiation-free magnification
The Rentals MD Difference:

Rentals MD offers the rentals you need quickly and cost-effectively. Our rentals are available in both short-term and long-term rental options with nationwide service. All of our rentals include costs of service and maintenance and even offer the ability to earn equity in your rental (rent-to-own). For more details simply give us a call or request a quote.

Product Specifications

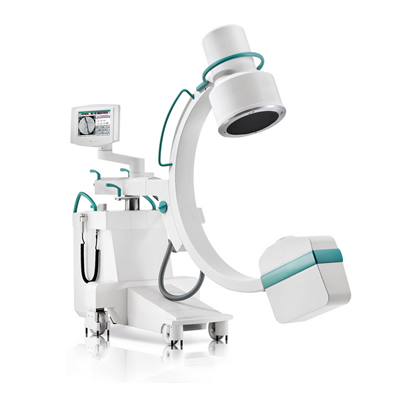

C-ARM

X-Ray Generator

  • X-ray tube: rotating anode
  • Dual focus (IEC): 0.3mm / 0.6mm
  • Target angle: 10 Degrees
  • Anode speed: 3450 RPM
  • Max. anode heat content: 300 kHU / 22 kJ
  • Max. anode heat dissipation: 870 W
  • Generator type:
    -Monoblock
    -20 kHz high frequency
    -Microprocessor-controlled
Operating Values:
  • Nominal output (100 kV): 7.5 kW
  • Maximum output: 7.5 kW
  • Pulsed Fluoroscopy:
    -kV range: 40-120 kV
    -mA range: 1.5-75 mA
    -pulse width: 4-30 ms, 8ms (in HQ mode without boost caps)
    -pulse rate: 1, 2, 5, 10, 15, 30 pulses/s (60 Hz)
  • Digital radiography (snap shot):
    -kV range: 40-120 kV
    -mA: up to 75 mA
  • Radiography (not available without boost caps):
    -kV range: 40-120 kV
    -mA: up to 75 mA
    -mAs: up to 250 mAs
Filtering:
  • Total filtering: > 4.4 mm Al equivalent
Output:
  • Pulsed fluoroscopy: up to 75 mA
  • Digital radiography (snap shot):up to 75 mA
  • Tube housing heat capacity:
    -powered by integrated Advanced Active Cooling and heat management system
    -5 million HU system heat capacity
    -1200 W continuous dissipation and clinical performance
Collimator System:
  • Collimator rotation: /- 90 Degrees
  • Iris collimator:
    -9″ II – 2″-9″ (50-230 mm) diameter
    -12″ II – 2-12″ (50-310 mm) diameter
  • Slot collimator:
    -9″ II – 2″-9″ (50-230 mm) diameter
    -12″ II – 2-12″ (50-310 mm) diameter
  • Virtual collimation without radiation

Image Intensifer

  • Type: cesium iodide
  • DQE (IEC): 65%
  • Conversion factor: 240 Cd
  • Anti-scatter grid: Pb 8/40
9″ Image Intensifier:
  • Central resolution 9″/6″/4″
  • Contrast Ratio: 30:1
12″ Image Intensifier:
  • Central resolution: 12″/9″ /6″
  • Contrast Ratio: 22:1

Digital Video Chain

Digital Video Camera:
  • Active pixels: 1,048,576
  • Camera matrix: 1024 x 1024 pixels
  • Bandwidth of video signal: 20 MHz
  • Bandwidth of video amplifier: 50 MHz
  • Video (monitor): 1,125 lines
  • Signal-to-noise ratio: 68 dB
  • Control: ADR / AVR

Dimensions & Mechanics:

  • Motor-driven vertical travel: 17″ (43cm)
  • Horizontal travel: 9″ (22 cm)
  • Orbital rotation:
    -90 Degrees / 45 Degrees (9″ II) 25 Degrees (12″ II)
  • Angulation: /- 225 Degrees
  • Swiveling (panning): /- 10 Degrees
  • Source/image receptor distance: 38″ (97 cm)
  • C-Arm vertical free space: 30″ (76 cm)
  • C-Arm depth: 27″ (68 cm)
  • Width: 32″ (80 cm)
  • Length: 74-83″ – 160 cm (9″ II) / 182 cm (12″ II)
  • Height: 70-87″ – 170 cm (9″ II) / 214 cm (12″ II)
Brakes:
  • Patented steering & braking lever, with parallel movement of the mobile stand in all directions

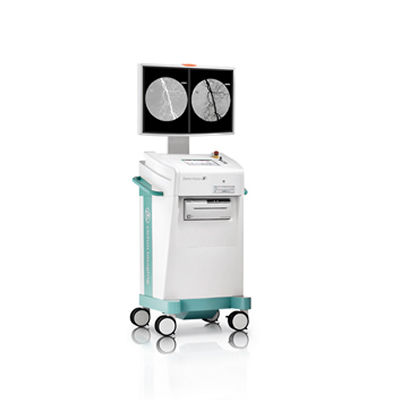

MONITOR CART

Digital Image Processing

Real-Time Processing Functions:
  • Recursive filter: 4 levels
  • Stack filter (Last Image Hold): 5 levels
  • Edge enhancement filer: 5 levels
  • Windowing and step windowing
  • Digital image rotation and reversal without radiation
  • Grayscale inversion
  • Digital shutters
Application-Oriented Anatomical Programs:
  • Bone, Heart, Abdomen, Endo (optional)
  • Motion, Metal, Soft, Large Patient
Image Acquisition:
  • Autosave
  • Cine loop with auto-playback (option)
    -sequential image storage and display:
    1, 2, 5, 10, 15, 20 frames/s
    -start, stop and replay rate controls
DSA Package (optional – only available on systems with boost caps):
  • DSA real-time subtraction with re-masking capability
  • MSA max. opacification sequence
  • RSA roadmapping
  • Pixel shift / landmarking
  • Digital measurement functions (distance/angle)
Cine Loop:
  • Sequential image storage and display
    1, 2, 5, 10, 30 frames/s
  • Cine loops start, stop and replay rate controls
Postprocessing Functions:
  • Edge enhancement: 5 levels
  • Zoom: 3 levels
  • Image rotation
  • Windowing
  • Grayscale inversion
  • Image cropping (digital shutters)
Digital Memory:
  • Storage capacity: up to 55,000 images
  • Memory matrix: 1024 x 1024 pixels
  • Image matrix: 1024 x 1024 pixels
  • Digital image processing: up to 32 bit
  • Grayscale: 4096 shades of gray (10 bit)
Data Organization:
  • Patient-based data management with 16-image mosaic display
  • pre-registration via DICOM worklist
  • Manual input or emergency registration
  • Air kerma dose display
  • Air kerma value tagged to stored image

Monitors

  • Super-high-resolution and high-brightness twin flat-screen monitors
    -screen size: 18.1″ (46 cm)
    -native resolution: 1280 x 1024 pixels
    -viewing angle (horizontal & vertical): 170 Degrees
    -contrast ratio: 600:1
    -Dimensions: 16 x 13 x 3″ (41 x 34 x 7 cm)

User Interface

  • TFT touchscreens on c-arm stand and monitor cart:
    -synchronized
    -intuitive icons for easy use
    -multi-lingual user interface

Archiving

  • Video printer (optional): paper and film
  • USB port:
    -storage capacity depends on storage medium
    -formats: DICOM, TIFF
    -downsized formats: DICOM, JPG
  • DVD-RW drive:
    -4.7 GB storage capacity
    -formats: DICOM, TIFF, Multimedia (AVI)
    downsized formats: DICOM, JPG
  • DICOM viewer software DVD and USB device
Networking:
  • Ziehm NetPro (optional):
    DICOM 3.0 interface (RJ45 or WLAN connection) for digital network integration
  • “Primary Capture” mode
  • Available DICOM Classes:
    -Storage class incl. multiframe capability, storage commitment and media class
    -Print class
    -Worklist class incl. modality performed procedure step (MPPS)
    -Query class
    -Retrieve class

Options

  • Laser positioning device mounted on image intensifier and/or generator
  • Emergency stop button
  • Video output for external documentation
  • Endo functionality:
    -4 pedal foot switch
    -landscape color monitor
    -endoscope s-video connection

Weight

  • C-Arm mobile stand:
    – 9″ – 838 lbs
    -12″ – 877 lbs
  • Monitor cart: 352 lbs

Additional information

Brand

Ziehm

Model

Vision R

C-Arm Size

Full Size – 2pc C-Arm & Monitor Cart
