Orthoscan FD-OR Mini C-Arm Rental

  • 2nd Generation Of The FD Model
  • kV Range: 40 – 78kVp
  • mA Range: 0.04 – 0.160mA
  • Flat Detector
  • 2 k x 1.5 k Image Resolution
  • 15.0 cm x 12.0 cm Field Of View


Orthoscan FD Mini C-Arm – Gen 1 | Orthoscan FD Mini C-Arm – Gen 2

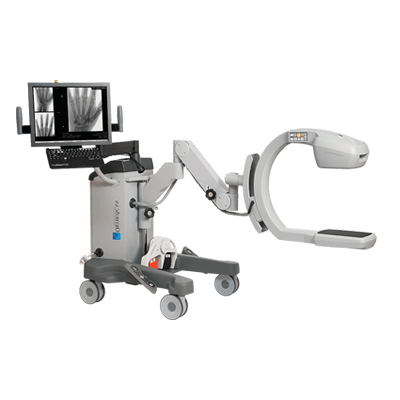

Orthoscan FD-OR Mini C-Arm Rental

OrthoScan introduces FD-OR — the first mini c-arm with flat detector. This flat detector design and compact form factor allows optimal positioning in the surgical environment. Exceptional image quality by increased grayscale improves diagnostic accuracy. User-driven design allows optimal image quality with minimal effort. Surgical lights on the undersurface of the x-ray source reduce shadows by providing primary light in the surgical field, illuminating anatomical detail.

Thinnest Flat Detector

The FD-OR utilizes the thinnest flat detector housing on the market, allowing the user to place the detector directly on the operating surface and leave the c-arm in the field to reduce OR time and decrease sterility risks. The compact form factor allows for additional maneuverability during cases and improves workflow.


The OrthoScan mini c-arm design allows for an orbital rotation of 150°. This enables the user to take advantage of the larger field of view without making mechanical adjustments required by competitive equipment. The increased orbital movement enables preferred views without stressing anatomy.

Surgical LED Lights

Located on the bottom of the tube head, these surgical lights provide additional illumination on the anatomy and eliminate shadows cast from the C.

Bilateral Sterile Field Controls

Conveniently located on each side of the tube head assembly, bilateral controls provide easy access to imaging and documentation in the sterile field.

Exceptional Image Quality

With FD-OR, fine details of relevant anatomy are visible due to the increased grayscale and contrast capability of flat detector technology. The FD-OR reduces the distortion inherent with image intensifier technology, improving diagnostic accuracy.

Flat Detector Technology

Flat detectors provide increased image quality, improved reliability, and more efficient imaging compared to older image intensifiers. The flat detector’s more direct signal conversion path results in uniform image brightness and less geometric distortion. The solid state detector provides more reliability, no image degradation due to vacuum leaks, and reads more of the individual x-rays, providing a better image quality for a given dose.

Small & Lightweight

The FD-OR mini c-arm is both lighter and smaller than competitive equipment. User-driven design allows optimal positioning and transport with minimal effort. The smaller size facilitates ease of movement that improves maneuverability.

The Rentals MD Difference:

Rentals MD offers the rentals you need quickly and cost-effectively. Our rentals are available in both short-term and long-term rental options with nationwide service. All of our rentals include costs of service and maintenance and even offer the ability to earn equity in your rental (rent-to-own). For more details simply give us a call or request a quote.

Product Specifications


  • Detector Resolution: 2 k x 1.5 k
  • Detector Size: Detector Size
  • Useful Array: 15.0 cm x 12.0 cm
  • Pixel Spacing: 75 microns
  • Dose Rate: AKR, DAP


  • Focal Spot: 50 microns
  • kV Range: 40 – 78 kVp
  • mA Range: 0.04 – 0.160 mA


  • Wireless Communication: Capable
  • DICOM 3.0 Compliant: Yes
  • MPPS: Capable
  • Image Capacity: 12,000
  • Video Capacity: 90 min
  • EMR Image Link: Capable
  • Cine Loop Export: Yes
  • USB 2.0 Ports: 2
  • Printer Options: 2


  • Free Space: 13.8″
  • Arc Depth: 19″
  • Pivot: 430°
  • Lateral Rotate (Wig-Wag): 320°
  • Orbital Rotate: 150°
  • Vertical Range: 34″
  • Distance to Cabinet: max 68″
  • Distance to Wheel Base: max 45″


  • Surgical LED Lights: Yes
  • Sterile Field Controls: Bilateral
  • Start Up Time: 30 sec
  • Temporary Image Hold: 512 images
  • Cine Loop Frame Rate: 30 fps
  • Snapshot Capabilities: Yes
  • Edge Enhancement: Yes
  • Post Process Brightness/Contrast: Yes
  • Adaptive Noise Suppression: Automatic
  • Manual Noise Suppression: 4 Modes
  • Laser Alignment: Yes
  • Multifunction Wireless Foot Switch: Capable


  • Monitor: 20.1″ LCD
  • Primary “Live” Image: 9.5″ x 7.5″
  • Dual Reference Images: 4.75″ x 3.75″
  • Built-in DICOM Calibration: Yes
  • Extendible Monitor Arm: Yes – 27″
  • Left/Right Arm Swivel: Yes
  • Height Adjustable Arm: Yes
  • Monitor Handles: Yes
  • Video Output: Yes
  • Monitor Brightness: 1000 cd/m2


  • Operating System: Windows 7 Embedded


  • Weight: 400 lb
  • Height: 44.5″
  • Footprint: 27″ x 33″

Additional information





C-Arm Size

Mini – 1pc – C on Monitor Cart
