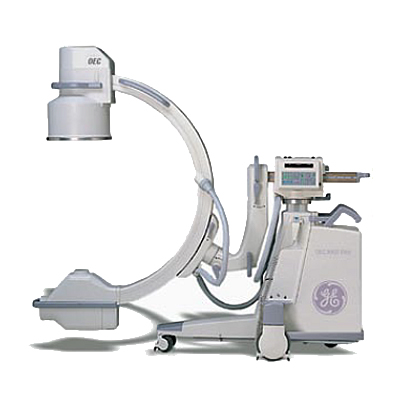

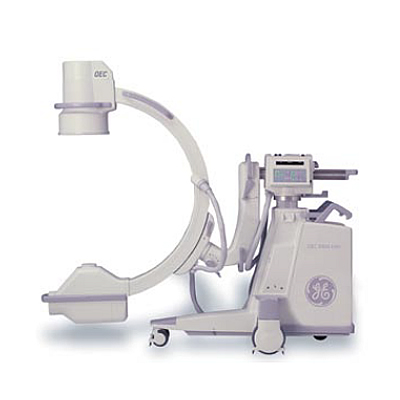

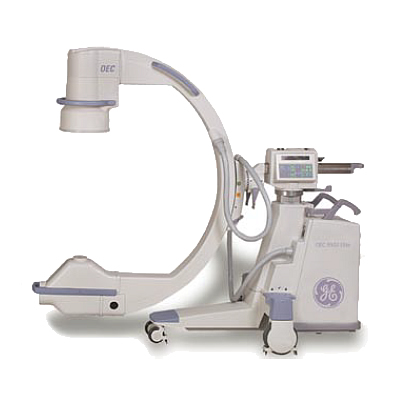

GE OEC 9900 C-Arm Rental

GE OEC 9900 C-Arm Rental

  • Fifth Generation OEC C-Arm System
  • GE OEC C-Arms Are The Industry Standard Which All Other Systems Are Compared To
  • Rotating Anode X-Ray Tube
  • 1K x 1K Image Resolution
  • Digital CCD Camera
  • LED Lit Flat Panel Monitors With Articulating Arm
  • 9″ and 12″ Image Intensifier Options
  • Standard “C” and Super “C” Options

Brochures:

GE OEC 9900 Brochure | GE OEC 9900 Specifications Brochure

SKU: GE9900 Categories: , Tags: , , , , , , , , ,

Description

GE OEC 9900 C-Arm Rental

The GE OEC 9900 Elite C-Arm System Is Today’s Standard.

Like the GE OEC 9800 before it, the current platform GE OEC 9900 C-Arm is the gold standard in mobile imaging, and live fluoro. GE took the popular 9800 model and upgraded it with modern touches such as large dual 18″ Anti-Glare flat panel monitors with articulating arm that not only makes it easier to view, but also adds increased sharpness and contrast over the 9800’s tube style monitors. Other updates include imaging presets to make case set up quicker and easier, DICOM for sending to PACS standard, as well as new software platforms such as the Vascular MTS that offers the popular bolus chase preset. The GE OEC 9900 Elite was first built in 2006 and currently still being produced by GE today.

The Rentals MD Difference:

Rentals MD offers the rentals you need quickly and cost-effectively. Our rentals are available in both short-term and long-term rental options with nationwide service. All of our rentals include costs of service and maintenance and even offer the ability to earn equity in your rental (rent-to-own). For more details simply give us a call or request a quote.

Product Specifications

X-Ray System:

Generator:
  • 60kHz high frequency
  • 15kW power
  • Up to 120kVp
  • Up to 75mA for radiographic film exposure
  • Continuous high level fluoro (HLF) up to 20mA
  • Digital spot up to 75mA
X-Ray Tube:
  •  Rotating anode X-ray tube
  • 0.3mm and 0.6mm focal spots
  • Anode heat capacity: 300,000 HU (per IEC 60613)
  • Anode cooling rate: 85,000 HU/min.
  • Housing heat capacity: 1,600,000 HU
  • Standard housing cooling 15,000 HU/min.
  • Passive housing cooling system: 22,500 HU/min. (Standard on 12 inch (31 cm) I.I. systems. Optional on 9 inch (23 cm) systems.
Digital Image Rotation:
  • Digitally adjusts image display
  •  Automatic image update
    – Image rotation
    – Image reversal (side-to-side)
    – Image invert (top-to-bottom)
  •  Image positioning without additional exposure
PreView™ Collimator:
  •  On-screen collimator position indication
  • PreView™ iris collimator
  • PreView™ Tungsten rotatable double leaf collimator
  • Adjusts collimators without X-ray exposure
Fluoro Mode:
  • kVp range: 40 -120
  • mA range: 0.2 – 10 normal mode 1.0 – 20 HLF (high level fluoro)
  • Auto and manual fluoro modes
  • AutoTrak™ ABS varies mA, kVp, camera gain
Pulsed Fluoro Mode:
  • kVp range: 40 – 120
  • mA range: 0.2 – 10
  • Pulse rate: 1, 2, 4, 8
  • Pulse width: 25 or 50ms
  • AutoTrak™ ABS, mA, kVp, camera gain
  • Reduces X-ray dose to patient and operator
High Level Pulsed Fluoro:
  •  kVp range: 40 – 120
  • mA range: 1 – 40
  • Pulse rate: 1, 2, 4, 8
  • Pulse width: 25 or 50ms
  • AutoTrak™ ABS, mA, kVp, and camera gain
Digital Spot Mode:
  • kVp range: 40 – 120
  • mA range: Up to 75
  • Automatic exposure termination and automatic image save Radiographic Mode
Radiographic Mode:
  • mA range: up to 75
  • mAs range: up to 300
  • Computer controlled exposure time
  • Optional film cassette holder
    – 10” x 12” (24cm x 30cm) for 9” I.I.
    – 14” x 14” (35cm x 35cm) for 12” I.I.

Video Imaging System:

9″ Image Intensifier:
  • Tri-mode 9”/6”/4.5” (23cm/15cm/11cm) image intensifier
  • Minimum central resolution (at the monitor):
    – 9” (23cm): 2.2 lp/mm
    – 6” (15cm): 3.0 lp/mm
    – 4.5” (11cm): 3.5 lp/mm
  •  DQE: 65% (typical)
12″ Image Intensifier:
  • Tri-mode 12”/9”/6” (31cm/23cm/15cm) image intensifier
  • Minimum central resolution (at the monitor):
    – 12” (31cm): 1.6 lp/mm
    – 9” (23cm): 2.2 lp/mm
    – 6” (15cm): 2.6 lp/mm
  • DQE: 65% (typical)
Precision imaging with Dynamic Range Management (DRM) enhances features of interest while attenuating background noise:
  • Preset Imaging Profiles
    – 9800
    – General
    – Orthopedic
    – Spine
    – Cardiac
    – Vascular
    – Bolus Chase
AutoTrak™ Automatic Brightness Stabilization (ABS)
  • Automatically seeks the subject anatomy anywhere within the imaging field and selects the optimum imaging technique
  • Automatically adjusts to anatomical size and location
  • Provides uniform image quality throughout entire image
  • Simplifies operation
Image I.Q.:
  • Smart Window
    – Dynamically senses the collimator position and automatically adjusts brightness and contrast to produce high image quality.
  • Smart Metal
    – Allows user to adjust automatic brightness and contrast sensitivity levels to metal
    – Provides optimum image quality even when metal is introduced to the field
  • Tungsten Collimator
    – Denser collimator limits X-ray exposure area
    – Reduces scatter radiation
    – Improves image detail
Video Camera:
  • High resolution 1k x 1k CCD camera
  • Full frame capture
  • Motorized rotation
  • On-screen orientation indicator (real-time feedback without fluoro)
  • Left-right image reversal
  • Top-bottom image invert

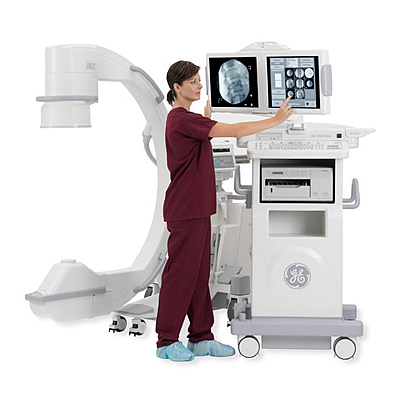

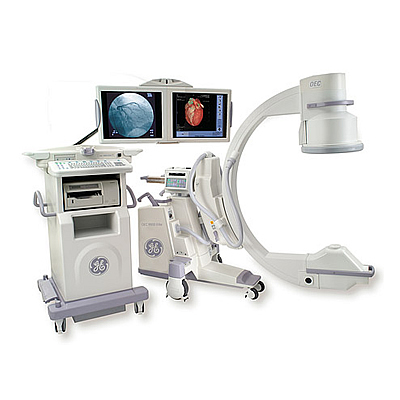

Video Display:
  •  Dual 18” (46cm) display anti-glare, LCD flat panel monitors mounted on an articulating arm
    – 22” horizontal travel
    – 7° up/10° down
    – Monitors viewable from all four sides of workstation
    – Horizontal and vertical viewing angle 170°
  • 700 CD/M2 maximum brightness
  • Touch screen system control
  • 1280 x 1024 high resolution monitors
  •  Ambient room-light compensation
  • Integrated color monitor for display of VGA, DVI, DVI-D, S-VHS, and SDI-SD formats (optional)

Configurations:

GSP (General Surgical Package) Platform:
  • • 1k x 1k x 16 bit image processing
  •  Preset Imaging Profiles
    – 9800
    – General
    – Orthopedic
    – Spine
  • Noise filter with on-screen indicator
  • Minimal difference spatio-temporal noise filter (MDST)
  • Real time dynamic range management (DRM)
  • Automatic digital brightness and contrast control
  • Manual digital brightness and contrast control
  • Negate mode
  • Save and auto-save feature
  • Swap and auto-swap feature
  • Patient information
    – Examination list
    – Customized patient information
  • Customize functions
    – Workstation set-up
    – Mainframe set-up
    – Patient information set-up
    – Date/time set-up
    – DICOM interface set-up
  • Last image hold
  •  63 image storage
  • CD/DVD burner with DICOM viewer for displaying images on PC platforms
    – 512 x 512 or 1k x 1k
  •  Integrated DICOM interface (store, print, worklist, and query/retrieve)
  • HIPAA SecureView®
    – Password protection
    – Blank screen function
ESP (Expanded Surgical Package) Platform:

Includes all the GSP features and:

  • 1000 image storage
  • Zoom and roam function
  • Image annotation
  • Measurement software
ESP Platform with 15fps Digital Disk:

Includes all the ESP features and:

  • 15fps Dynamic digital disk (60 Hz) 12fps (50 Hz)
    – Recording/playback rate: 1, 2, 4, 8, 15fps (60 Hz) 12fps (50 Hz)
    – Automatic image playback capability
    – Frame-by-frame review
    – Recording time: 10 minutes @ 15fps (60 Hz) 12 fps (50 Hz)
PM Care Platform:

Includes all the ESP features and:

  • Real-time subtraction
  • Digital subtraction (DSA) angio
  • Peak opacification
  • 8fps Dynamic digital disk
    – Recording/playback rate: 1, 2, 4, 8fps
    – Recording time: 5 minutes @ 8fps
    – Automatic image playback
    – Frame-by-frame review
Basic Vascular Platform:

Includes all the PMCare features and:

  • Vascular preset imaging profile
  • Roadmapping
  • Re-registration
  • Variable landmarking
  • Mask save/recall
Vascular MTS Platform:

Includes all the Basic Vascular features plus Motion Tolerant Subtraction (MTS) and:

  • Bolus chase preset imaging profile
  • Digital cine pulse mode
    – 30 pulses/sec 60 Hz (25 pulses/sec 50 Hz)
    – Up to 150mA
    – 10ms pulse width
  • 30fps Dynamic digital disk 60 Hz (25 pulses/sec, 50 Hz)
    – Recording/playback rate: 1, 2, 4, 8, 15, 30fps 60 Hz (1, 2, 4, 8, 12, 25, 50 Hz)
    – Recording time: 10 minutes @ 30fps 60 Hz (time depends on record frame rate) (25 fps, 50 Hz)
Cardiac Platform with Interventional Vascular Capability:

Includes all the Vascular MTS features and:

  •  Cardiac preset imaging profile
  • Super “C” configuration (9”/23cm I.I. only)
  • Single leaf curved collimator
  • Three pedal footswitch

Additional Features:

Super-C Configuration:
  • Adds Larger “C” for increased orbital rotation (145 degrees)
  • Increased Arc Depth (33″ / 838mm)
MD Configuration:
  • Adds motorized movements of c-arm
Other Image Storage Options:
  • CD/DVD Writer digital interface (external)
  • Integrated DICOM 3.0 interface
Hardcopy Options:
  •  Integrated film/paper printer
    – No film developing required
    – 8” x 10” (20.3 cm x 25.5 cm) laser quality film/paper
    – Multi-format, 1, 2, 4 on 1
    – Multi-copy capability
  • Thermal printers
  • Integrated DICOM interface (storage class/print class/query work-list)*
User Interface:
  • Entire system is computer controlled and software upgradeable
  • Touchscreen control simplifies operation
  • Automated system operation requires minimum operator interface
  • Multi-functional controls
    – Footswitch
    – IR remote (optional)
    – Hand-held control
  • Simplified keyboard with integrated touchpad
  • Multi-purpose image directory
    – Retrieve and review images
    – Compose hardcopy films
    – Copy image
  • X-ray dose summary
Uninterruptible Power:
  • Orderly shutdown Electrical
  • Input power (60 Hz or 50 Hz) 9900 Elite
    – 120V @ 12 A
    – 200V, 220V, 230V, 240V @ 10 A
Regulatory Compliance:
  • U.S. 21 CFR Subchapter K
  • NFPA 99
  • UL 60601-A (CSA/NRTL)
  • IEC60601-1 (plus relevant collateral and particular standards)

OEC 9900 Elite Configuration Options

The OEC 9900 Elite is available in a number of configurations, allowing you to select the product features that best meet your clinical needs:

Orthopedics, General Surgery, and Pain Mangement:
  • 9900 GSP
  • 9900 ESP
  • 9900 PMCare 8 F/S Digital Subtraction
    – Fro orthopedics, general surgery, GI, pain management and other general applications.
Endovascular:
  • 9900 Basic Vascular 8 F/S
  • 9900 Vascular MTS 30 F/S (25 F/S @ 50 Hz)
    -For vascular surgery and interventional vascular applications.
    -12/9/6″ (31/23/15 cm) tri-mode image intensifier: A larger field of view than the standard 9/6/4/5″ (23/15/10 cm) image intensifier, for many vascular applications or wherever a larger field of view is required.
Cardiac Surgery and Mobile Cardiac Cath lab/EP lab

  • 9900 Cardiac 30 F/S (25 F/S @ 50 Hz)
    -For complex coronary, peripheral or abdominal angiography.
    -Super-C design: Larger than the standard C, the Super C design provides greater clearance and greater range of overscan for the oblique angulations required in both cardiac and spine work (9” (23 cm) I.I. only).

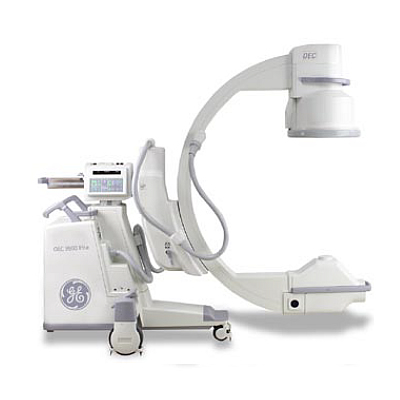

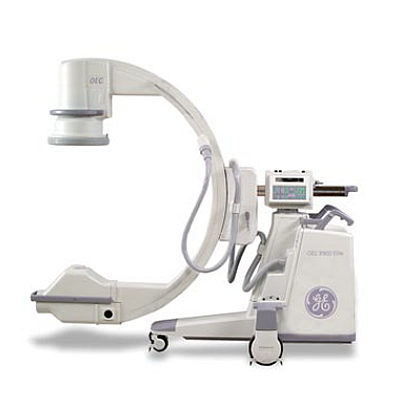

9900 MD C-arm:
  • 9°/sec. Lateral Motorized Rotation.
  • 9” (23 cm) I.I., 12” (31 cm) I.I.
  • RUI (Remote User Interface – Table Side Control Panel
    -All 9900 Mainframe Controls.
    -Image Review Functions.
    -C-arm Motion Joystick Control.
    -Motorized Vertical Lift.
  • Contact/Collision Detection.
  • C-arm Angle Display – real-time and saved images.
  • Enhanced X-ray tube housing cooling system.

Physical Specifications

GE OEC 9800 Physical Specifications

Additional information

Brand

GE OEC
Model

9900 Elite
C-Arm Size

Full Size – 2pc C-Arm & Monitor Cart
