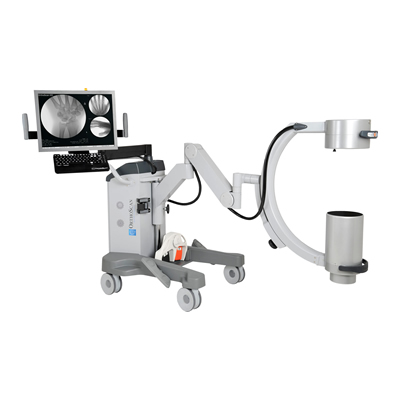

Orthoscan HD Mini C-Arm Rental

  • kV range: 40 – 78kVp
  • mA range: 0.04 – 0.160mA
  • 1K x 1K Image Resolution
  • 6” and 4” field of view

Brochures:

Orthoscan HD Mini C-Arm Brochure

Description

Orthoscan HD Mini C-Arm Rental

MALL AND LIGHTWEIGHT

OrthoScan HD Mini C‑Arm is half the size and 28% lighter than the competition. The smaller size facilitates ease of movement and improves maneuverability. We are putting control back in the surgeon’s hands and making a difference in the experience for every user.

LARGEST & MOST DETAILED IMAGES

OrthoScan HD brings the surgery closer to you. The superior display size of the image allows for more precise evaluation of images taken and enables users to analyze fine details of the image at a distance. The “live” image is 38% larger than our competition’s largest image. Just like viewing a big screen TV from across a living room, it is easier to see a larger image at a distance.

The resolution of the OrthoScan HD enables the highest quality of imaging detection through superior gray scale and exceptional clarity. The improved diagnostic quality provides the ability to detect hairline fractures that may have been overlooked.

ADJUSTMENT FREE IMAGING

OrthoScan HD automatically adjusts to metal, motion, and varying anatomy. The accurate adjustments of the OrthoScan HD Mini C‑Arm allow the operator to use less fluoro time (less dose) and accurately view anatomy. It allows the surgeon to focus on the patient rather than equipment.

INTUITIVE AND EASY TO USE

OrthoScan HD has a simple interface that allows the user to perform basic imaging with little, if any, preparation. The custom keyboard allows single key access to most functions. The features are accessible, intuitive, and – for the most part – automatic.

SURGEON DRIVEN DESIGN

The team at OrthoScan spent countless hours in extremity procedures over the last 10 years gathering surgeon feedback and developing a plan to build the optimal mini c‑arm. The attention to detail from our doctor advisors and customers has resulted in a product that sets new standards in mini c‑arm imaging.

The Rentals MD Difference:

Rentals MD offers the rentals you need quickly and cost-effectively. Our rentals are available in both short-term and long-term rental options with nationwide service. All of our rentals include costs of service and maintenance and even offer the ability to earn equity in your rental (rent-to-own). For more details simply give us a call or request a quote.

Product Specifications

IMAGING

  • Temporary image hold: 512 images
  • Snapshot capabilities
  • Frame rate: 30fps
  • Automatic adaptive noise suppression
  • 4 mode manual noise suppression
  • Post process brightness/contrast
  • Edge enhancement
  • Laser alignment device
  • Sterile field controls buttons: fluoro; rotate; A/P and lateral image hold; kV/mA (bright/dark); and print and/or save

X-RAY MONOBLOCK

  • Focal spot: 50 microns
  • kV range: 40 – 78kVp
  • mA range: 0.04 – 0.160mA
  • Bias capable

IMAGE INTENSIFIER

  • CCD resolution: 1k x 1k
  • 6” and 4” field of view
  • Nominal diameter: 6″
  • Useful entrance field size: 145mm
  • Magnified operating mode: 105mm
  • DQE at 59.5 keV(IEC standard): 65%
  • Conversion factor(normal/zoom): 17/9(cd.m-2/µGy.s-1)
  • Limiting resolution – center (normal/zoom): 55/65 lp/cm

STORAGE

  • Image capacity: 8000
  • Video (optional): 90 minutes

FILE EXCHANGE

  • DICOM 3.0 compliant with DICOM Send, Store, Print, and Worklist services
  • DVD burner capable
  • Two USB 2.0 ports

MONITOR

  • View area: 20.1”
  • Primary “live” image: 10” diameter
  • Dual secondary images: 5.5” diameter each
  • Resolution: 2 megapixel, monochrome TFT LCD
  • Built-in DICOM calibration
  • Height adjustable with left/right swivel
  • Extendible monitor arm: 27” range of motion
  • Monitor handles

FOOTSWITCH

  • Wired: acquire
  • Infrared (optional): acquire, print, save (customizable)

C‑ARM

  • Free space: 13.8”
  • Arc depth: 18.2”
  • Pivot: 380°
  • Lateral rotate (wig-wag): 320°
  • Orbital rotate: 120°
  • Vertical range: 41”
  • Distance to cabinet: 60” maximum
  • Distance to wheel base: 40” maximum

SIZE AND DIMENSIONS

  • Weight: 400lbs
  • Height: 44.5″
  • Width: 29″

EMR IMAGE LINK

Enables EMR connectivity with the OrthoScan HD with Flat Detector – OR. OrthoScan is the only mini c‑arm capable of automatically transferring images to your EMR system. (US customers only)

DICOM 3.0 COMPLIANT

  • DICOM Store: Sends images to a PACS server
  • DICOM Modality Worklist: Imports patient information from a hospital/radiology information system
  • DICOM Print: Sends images to a DICOM networked printer
  • DICOM Video: Sends video to a PACS server

PRINTERS

The OrthoScan HD with Flat Detector – OR can be equipped with two types of printers:

  • Small Format: 3.5″ x 3.5″ print on thermal paper
  • Large Format: 5″ x 7″ print on thermal paper or blue film

WIRELESS COMMUNICATION

The OrthoScan HD with Flat Detector – OR can be equipped with an encrypted wireless 802.11 a/b/g communication system, enabling a secure communication with your HIPAA compliant records system.

INTERNAL IMAGE STORAGE

OrthoScan HD with Flat Detector – OR stores 8,000 images on the unit.

DIGITAL VIDEO RECORDER

The OrthoScan HD with Flat Detector – OR internal digital video recorder stores motion at an industry-leading 30 frames per second at full resolution. The system can store up to 90 minutes of video at full resolution. Video files can be exported to USB memory stick or CD/DVD.

VIDEO OUT

The OrthoScan HD with Flat Detector – OR has industry standard DVI/VGA outputs compatible with your projection equipment.

USB MEMORY STICK

The USB memory stick can hold up to 1,000 images per gigabyte. The images are stored in a convenient folder with the patient’s name in both a DICOM and JPEG format. JPEG images can be viewed on any standard computer.

INTERNAL IMAGE STORAGE

OrthoScan HD with Flat Detector – OR stores 8,000 images on the unit.

Additional information

Brand

Orthoscan

Model

HD

C-Arm Size

Mini – 1pc – C on Monitor Cart
