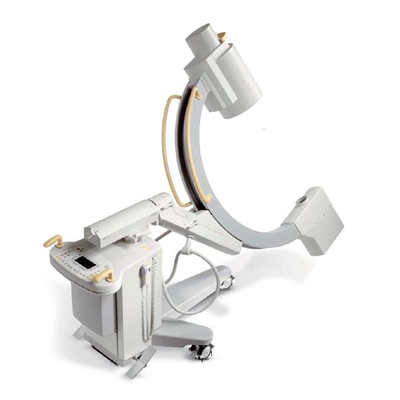

This lightweight system comes with a 9” image intensifier and is made to go anywhere you need it – surgery, intensive care, outpatient care, and emergency. And to handle all your routine procedures:
- Orthopedic surgery • Abdominal surgery • Neurosurgical procedures • Thoracic surgery • Vascular procedures
X-Ray Generation:
X-ray tube: Stationary anode tube with active heat management
X-ray generator: DC converter, Constant Potential (CP) generator, micro-processor controlled
Nominal power: 3.15 kW: 110 kV, 20 mA
Geometry:
Free space within C-arm: 77 cm (30.3”)
Angulation: 90° to -25°
C-arm depth: 61 cm (24.0”)
Rotation: ± 180°, with safety stop at ± 135°
Source Image Distance: 98 cm (38.7”)
Extended angulation (optional): 90° to -45° for increased projection flexibility
Lowest lateral working position: 102 cm (40.0”)
Imaging chain:
Image intensifier: Single mode 6” HC, Triple mode 9” HRC
TV camera type: Interline transfer CCD; high resolution
Nominal II formats: 6”: 15 cm 9”: 23, 17, and 14 cm (9”, 7” and 5”)
Video standard: CCIR: 625 lines; 2:1 interlaced
Options:
Lase Aiming Device: Yes
ViewForum: Multi-modality workstation
DVD Recorder: Yes
DICOM: Yes
