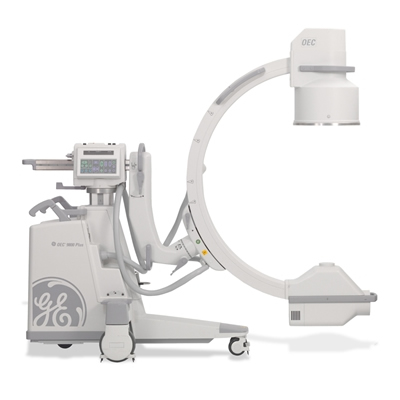

GE OEC 9800 C-Arm Rental

GE OEC 9800 C-Arm Rental

  • Fourth Generation OEC C-Arm System
  • GE OEC C-Arms Are The Industry Standard Which All Other Systems Are Compared To
  • Rotating Anode X-Ray Tube
  • 1K x 1K Image Resolution
  • Digital CCD Camera
  • 9″ and 12″ Image Intensifier Options
  • Standard “C” and Super “C” Options

Brochures:

GE OEC 9800 Brochure | GE OEC 9800 Specifications Brochure

SKU: GE9800 Categories: , Tags: , , , , , , ,

Description

GE OEC 9800 C-Arm Rental

Since the 1970s OEC C-Arm systems have been the industry standard and the GE OEC 9800 is no different.

The GE OEC 9800 C-Arm system builds off the popular GE OEC 9600, and improves it by offering an increased resolution (1,000 x 1,000 pixel resolution vs the 9600’s 512 x 512), touch-screen controls, additional configurations (PMCare, Neuro-Vascular, and Cardiac packages), additional physical options such as MD Models (motorized movements), and increased storage options (additional image storage on disk as well as built-in DICOM). The c-arm was manufactured from 2000 to 2005 with the 9800 Plus models being manufactured from 2003-2005.

The Rentals MD Difference:

Rentals MD offers the rentals you need quickly and cost-effectively. Our rentals are available in both short-term and long-term rental options with nationwide service. All of our rentals include costs of service and maintenance and even offer the ability to earn equity in your rental (rent-to-own). For more details simply give us a call or request a quote.

Product Specifications

X-Ray System:

Generator:
  • 60kHz high frequency
  • 15kWpower
  • Up to 120kVp
  • Up to 75mA for radiographic film exposure
  • Continuous high-level fluoro (HLF) up to 20mA
  • Digital spot up to 75mA
  • Digital cine pulse:
    -15 pulses per second, 60 Hz
    -12 pulses per second, 50 Hz
    -Up to 150mA
    -10ms pulse width
  • Full power from standard wall outlet
  • Patented Battery buffered design
X-Ray Tube:
  • Rotating anode x-ray tube
  • 0.3 and 0.6 nominal focal spots
  • Anode heat capacity: 300,000 HU
  • Anode cooling rate: 85,000 HU/min
  • Housing heat capacity: 1,600,000 HU
  • 9″ (23cm) Standard C-Arm housing cooling rate 15,000 HU/min
  • 9″ (23cm) Super C-Arm and 12″ (31cm) Standard C-Arm housing cooling rate 22,500 HU/min
Digital Image Rotation:
  • Digitally adjusts image display
  • Image update
    -Image rotation
    -Image reversal (side-to-side)
    -Image invert (top-to-bottom)
  • Image positioning without additional exposure
PreView Collimator:
  • On-screen collimator position indication
  • PreView iris collimator
  • PreView Tungsten rotatable double leaf collimator
  • Adjusts collimators without x-ray exposure
Fluoro Mode:
  • kVp range: 40-120
  • mA range:
    -0.2-10 normal mode
    -0.2-20 HLF (high level fluoro)
  • Auto and manual fluoro modes
  • AutoTrak ABS varies mA, kVp, camera gain
Pulsed Fluoro Mode:
  • kVp range: 40-120
  • mA range: 0.2 -10
  • Pulse rate: 1, 2, 3, 8
  • Pulse width: 25 or 50 ms
  • AutoTrak ABS, mA, kVp, camera gain
  • Reduces x-ray dose to patient and operator
High Level Pulsed Fluoro:
  • kVp range: 40-120
  • mA range: 0.2-40
  • Pulse rate: 1, 2, 4, 8
  • AutoTrak ABS, mA kVp, and camera gain
Digital Cine Pulse Mode:
  • kVp range: 40-120
  • mA range: up to 150
  • Pulse rate: 15 pps (60 Hz), 12 pps (50Hz)
  • Pulse width: 10ms
  • AutoTrak ABS, mA, kVp, camera gain
Digital Spot Mode:
  • kVp Range: 40-120
  • mA range: up to 75
  • Automatic exposure termination and automatic image save
Radiographic Mode:
  • mA range: up to 75
  • mAs range: up to 300
  • Computer controlled exposure time
  • Optional film casette holder
    -10×12″ for 9″ II
    -14×14 for 12″ II

Video Imaging System:

9″ Image Intensifier:
  • Tri-mode 9″/6″/4.5″ (23cm/15cm/11cm) image intensifier
  • Minimum central resolution (at the monitor):
    -9″ (23cm): 2.1 lp/mm
    -6″ (12cm): 2.9 lp/mm
    -4.5″ (11cm): 3.4 lp/mm
  • DQE: 65% (typical)
12″ Image Intensifier:
  • Tri-mode 12″/9″/6″ (31cm/23cm/15cm) image intensifier
  • Minimum central resolution (at the monitor):
    -12″ (31cm): 1.5 lp/mm
    -9″ (23cm): 2.1 lp/mm
    -6″ (12cm): 2.9 lp/mm
  • DQE: 65% (typical)
Autotrak Automatic Brightness Stabilization (ABS):
  • Automatically seeks the subject anatomy anywhere within the imaging field and selects the optimum imaging technique
  • Automatically adjust to anatomical size and location
  • Provides uniform image quality throughout entire image
  • Simplifies operation
Image I.Q.:
  • Smart Window:
    -Dynamically senses the collimator position and automatically adjusts brightness and contrast to produce high image quality.
  • Smart Metal:
    -Allows user to adjust automatic brightness and contrast sensitivity levels to metal
    -Provides optimum image quality even when metal is introduced to the field
  • Tungsten Collimator:
    -Denser collimator limits x-ray exposure area
    -Reduces scatter radiation
    -Improves image detail
Video Camera:
  • High resolution 1k x 1k CCD camera
  • Full frame capture
  • Motorized rotation
  • On-screen orientation indicator (real-time feedback without fluoro)
  • Left-right image reversal
  • Top-bottom image invert

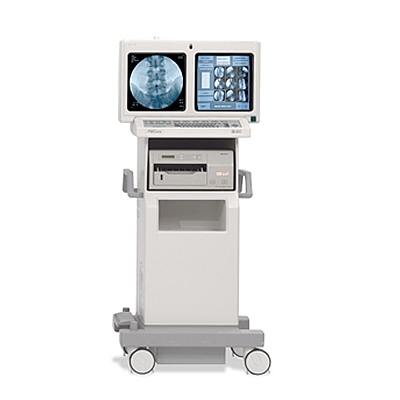

Video Display (OEM Factory):
  • Dual 16″ (41cm) square monitors
  • Anti-glare, progressive full frame scan monitor
  • Touch screen system control
  • 1,000 line high resolution monitors
  • Ambient room-light compensation
Video Display (Upgraded Retrofit Kit):
  • 32″ LED Lit LCD Display With Dual Screen Capabilities
  • Anti-glare, progressive full frame scan monitor
  • Touch screen system control
  • 2 Mega Pixel high-resolution output
  • Ambient room-light compensation

Configurations:

GSP (General Surgical Package) Platform:
  • 1k x 1k x 16 bit image processing
  • Noise filter with on-screen indicator
  • Real-time variable edge enhancement
  • Automatic digital brightness and contrast control
  • Negate mode
  • Save and auto-save feature
  • Swap and auto-swap feature
  • Patient information
    -Examination list
    -Customized patient information
  • Customize functions:
    -Workstation set-up
    -Mainframe set-up
    -Patient information set-up
    -Date/time set-up
    -DICOM 3.0 interface set-up
  • Last image hold
  • 63 image storage
  • Integrated DICOM interface (store, print, worklist)
  • HIPAA SecureView:
    -Password protection
    -Blank screen function
    -Delete all
ESP (Expanded Surgical Package) Platform:

Includes all the GSP features and:

  • 200 or 400 image storage
  • Zoom and roam function
  • Image annotation
  • Measure software
PMCare Platform:

Includes all the ESP features and:

  • Real-time digital subtraction (DSA)
  • Peak opacification
  • 8fps dynamic digital disk
    -Recording /playback rate: 1, 2, 4, 8fps
    -Recording time:  5 minutes @ 8fps
Vascular Platform:

Includes all the ESP features and:

  • Real-time digital subtraction (DSA)
  • Roadmapping
  • Peak opacification
  • Re-registration
  • Variable landmarking
  • Mask save/recall
  • Auto cine loop playback
  • Digital cine pulse mode:
    -15 pulses/sec
    -Up to 150mA
    -10ms pulse width
  • 15fps dynamic digital disk:
    -Recording/playback rate: 1, 2, 4, 8, 15fps
    -Recording time: 10 minutes @ 15fps (time depends on record frame rate)
Neuro-Vascular Platform:

Includes all the Vascular features and:

  • 30fps dynamic digital disk:
    -Recording/playback rate: 1, 2, 4, 8, 15, 30fps
    -Recording time: 10 minutes @ 30fps (time depends on record frame rate)
Cardiac Platform:

Includes all the Neuro-Vascular features and:

  • Single leaf curved collimator
  • Three pedal footswitch
  • Upgraded x-ray tube cooling

Additional Features:

Super-C Configuration:
  • Adds Larger “C” for increased orbital rotation (145 degrees)
  • Increased Arc Depth (33″ / 838mm)
MD Configuration:
  • Adds motorized movements of c-arm
Other Image Storage Options:
  • CD/DVD Writer digital interface (external)
  • Integrated DICOM 3.0 interface
Hardcopy Options:
  • Integrated film/paper printer
    -No film developing required
    -8×10″ (20.3cm x 25.5 cm) laser quality film/paper
    -Multi-format, 1,2, 4 on 1
    -Multi-copy capability
  • Thermal printers
User Interface:
  • Entire system is computer controlled and sofware upgradeable
  • Touchscreen control simplifies operation
  • Automated system operation requires minimum operator interface
  • Multi-functional controls
    -Footswitch
    -IR remote (optional)
    -Hand-held control
  • Simplified keyboard
  • Multi-Purpose image directory
    -Retrieve and review images
    -Compose hardcopy films
    -Copy images
  • X-ray dose summary
Electrical:
  • Input power (69Hz ir 50Hz)
    -100v @ 20 A (Japan)
    -120V @ 12 A
    -200V, 220V, 230V, 240V @ 10 A
Regulatory Compliance:
  • U.S. 21 CFR Subchapter K
  • NFPA 99
  • UL 60601-A (CSA/NRTL)
  • IEC60601-1 (plus relevant collateral and particular standards)

Physical Specifications

GE OEC 9800 Physical Specifications
GE OEC 9800 Size Comparison

Additional information

Brand

GE OEC
Model

9800, 9800 Plus
C-Arm Size

Full Size – 2pc C-Arm & Monitor Cart
