Description
Ziehm Solo C-Arm Rental

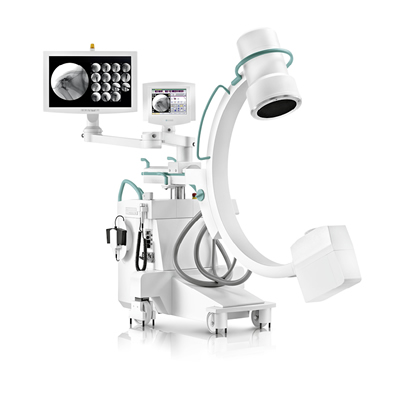

Ziehm Solo is the first choice for small operating rooms. The single unit comprises a compact and versatile C-arm, full-size monitor and intuitive touchscreen user interface. All functions required for an optimal image acquisition, processing and archiving are integrated in the C-arm. Ziehm Solo delivers optimal performance for pain management, orthopedics and lithotripsy. Versatile viewing options such as the separate Ziehm Viewing Station enable the physician to configure the unit according to individual requirements. A variety of options let Ziehm Solo be configured to the needs of the application it will be used for.
Ziehm Solo Highlights:
- Compact design with 24” split screen, flatscreen monitor or 2 x 18” flatscreen monitors mounted on C-arm
- Footprint of only 0,8m²
- Intuitive user interface for easy handling on one single touchscreen
Ziehm Solo Image quality:
- High resolution thanks to 1k x 1k technology and more than 4,000 shades of gray
- Pulsed monoblock 2 kW generator for optimal image quality with up to 25 frames per second
The Rentals MD Difference:
Rentals MD offers the rentals you need quickly and cost-effectively. Our rentals are available in both short-term and long-term rental options with nationwide service. All of our rentals include costs of service and maintenance and even offer the ability to earn equity in your rental (rent-to-own). For more details simply give us a call or request a quote.
Product Specifications
C-ARM MOBILE STAND
Dimensions & Mechanics:
- Motor-driven vertical travel: 42 cm
- Horizontal travel: 22 cm
- Orbital rotation:
-90 Degrees / 45 Degrees (9″ II) - Angulation: /- 225 Degrees
- Swiveling (panning): /- 10 Degrees
- Source/image receptor distance: 97 cm
- C-Arm vertical free space: 76 cm
- C-Arm depth: 68 cm
- Width: 80 cm
- Length: 173 cm / 195 cm
- Height: 177 cm / 220 cm
- Weight: 210 kg
Brakes:
- Patented steering & braking lever, with parallel movement of the mobile stand in all directions
X-Ray Generator
- X-ray tube: stationary anode
- Single focus: 0.6 (IEC 336)
- Max anode heat content: 45 kHU / 34 kJ
- Max anode heat dissipation: 600 W
- Generator type:
-Monoblock
-20 kHz high frequency
-Microprocessor-controlled - Nominal output (100 kV): 2,000 W
- Maximum output: 2,020 W
Collimator System:
- Collimator rotation: /- 90 Degrees
- Iris collimator:
-23 cm II, 50-230 mm diameter - Slot collimator:
-23 cm II, 50-230 mm diameter - Virtual collimation without radiation
Operating Values:
- Pulsed fluoroscopy:
-kV range: 40-110 kV
-mA range: 0.2-10 mA
-pulse width: 10-30 ms
-pulse rate: 1, 2, 4, 8, 12.5, 25 pulses/s - Digital radiography (snap shot):
-kV range: 40-110 kV
-mA: up to 8 mA - Radiography:
-kV range: 40-110 kV
-mA range: up to 20 mA
Filtering:
- Total filtering: > 4 mm Al, including 0.1 mm Cu
Output:
- Pulsed Fluoroscopy: up to 10 mA
- Digital radiography (snap shot): up to 20 mA
- Tube housing heat capacity:
-Powered by integrated advanced heat management system
-1.14 million HU system heat capacity
-Cooling rate 32 kHU/min
Collimator System:
- Collimator rotation: /- 90 Degrees
- Iris collimator:
-9″ II – 50-230 mm diameter
Digital Video Chain
Digital Video Camera:
- Active pixels: 1,048,576
- Camera matrix: 1024 x 1024 pixels
- Bandwidth of video signal: 20 MHz
- Bandwidth of video amplifier: 50 MHz
- Signal-to-noise ratio: 68 dB
- Control: ADR / AVR
Image Intensifer
- Type: cesium iodide
- DQE (IEC): 65%
- Conversion factor: 240cD
- Antiscatter grid: pb 8/40
- Central resolution: 9″ / 6″ / 4″ (23-15-10 cm)
- Contrast ratio: 30:1
Interface:
- TFT touchscreens on monitor support arm:
-intuitive icons for easy use
-resolution: 640 x 480 pixels
-multi-lingual user interface
Digital Image Processing
Application-Oriented Anatomical Programs:
- Bone, Heart, Abdomen
- Soft, Large Patient
- Metal, Soft, Large Patient
Real-Time Processing Functions:
- Recursive filter: 4 levels
- Stack filter (Last Image Hold): 5 levels
- Edge enhancement filer: 5 levels
- Windowing and step windowing
- Digital image rotation and reversal without radiation
- Grayscale inversion
- Digital Shutters
Object Detected Dose Control (option):
- Object detection
- Motion detection
- Automatic dose reduction
- Automatic metal correction
Image Acquisition:
- Autosave
- Cine loop with auto-playback (option)
-sequential image storage and display:
1, 2, 4, 8 frames/s
-start, stop and replay rate controls - Grayscale: 4,096 shade of gray (12 bit)
DSA Package (option):
- DSA real-time subtraction with re-masking capability
- Pixel shift / landmarking
- Digital measurement functions (distance / angle)
Post Processing Functions:
- Edge enhancement: 5 levels
- Zoom: 3 levels
- Image rotation
- Windowing
- Grayscale inversion
- Image cropping (digital shutters)
Cine Loop:
- Sequential image storage and display:
1, 2, 4, 8 frames/s - Start, stop and replay controls
Digital Memory:
- Storage capacity: up to 55,000 images
- Memory matrix: 1024 x 1024 pixels
- Image matrix: 1024 x 1024 pixels
- Digital image processing: up to 32 bit
Data Organization:
- Patient-based data management with 16 image mosaic display
- Pre-registration via DICOM Worklist
- Manual input or emergency registration
- Air Kerma dose display
- DAP value tagged to stored image
Monitors
- High-resolution and high-brightness split screen monitor
-Screen size: 24″ (61 cm)
-Native resolution: 1920 x 1200 pixels
-Viewing angle: 178 degrees
-Luminance: Max 400 cd/m2
-Contrast ratio: 600:1
-Dimensions: 56 x 37 x 10 cm
-Mounted on monitor support arm - High-resolution and high-brightness twin flat screen monitors (optional)
-Screen size: 2 x 18.1″ (46 cm)
-Native resolution: 1280 x 1024 pixels
-Viewing angle: 170 degrees
-Luminance: Max 600 cd/m2
-Contrast ratio: 600:1
-Dimensions: 41 x 34 x 7 cm
-Mounted on monitor support arm
Archiving
- Video printer (optional): paper and film
- USB port
- DVD-RW drive
- DICOM Viewer software for DVD and USB devices
Networking:
- Ziehm netPort (option): DICOM 3.0 interface (RJ45 or WLAN connection) for digital network integration
- Primary Capture Mode
- Available DICOM Classes:
-Storage Class
-Print Class
-Media Class
-Worklist Class
-Query Class
-Retrieve Class
Options:
- Security key switch (x-ray)
- Laser position device
- Measured dose are product
- Emergency stop button
- Video output for external documentation
- Color-coded brake handles
- Measurement functions
Additional information
| Brand | Ziehm |
|---|---|
| Model | Solo |
| C-Arm Size | Compact – 1pc – Monitoring On C-Arm |
