MediCap USB170 Rental

  • Records still images in standard defintion from medical video sources.
  • Records to USB flash drive (included) or USB hard drive (not included)
  • Image formats: JPG, TIF, PNG, DICOM


Medicapture USB 170 Brochure

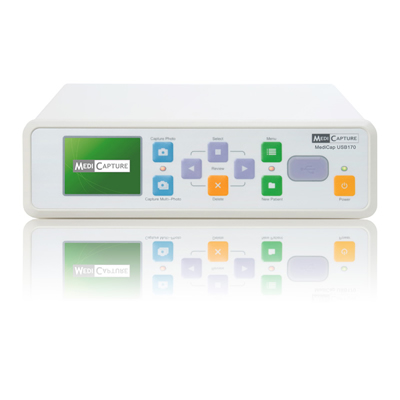

MediCap USB170 Rental

Medical Still Image Recorder

The MediCap USB170 is the easy way to capture still images of your medical procedures. Images are recorded directly to a USB flash drive or optional hard drive. When you finish recording, just plug the flash drive into any computer. Then you can view, archive, edit, share, etc.

The USB170 is so easy to use, you’ll be saving images just minutes after unpacking it – no training is needed and it’s simple to connect. The USB170 is compatible with all standard definition medical cameras including endoscopes, arthroscopes, surgical microscopes, C-Arms, ultrasounds, etc. Now it’s easy to get started with digital imaging, and at price that’s remarkably affordable.

Device TypeMedical Sitll Image Recorder
Records still images in standard defintion
from medical video sources
MediaRecords to USB flash drive (included) or
USB hard drive (not included)
CaseRugged metal case with high-impact plastic faceplate
Monitor2 1/2” LCD (for video confirmation only;
not for diagnosis)
ButtonsSealed membrane, fluid resistant
Video In/OutPAL or NTSC
S-video or composite BNC connections
Image FormatsJPG, TIF, PNG, DICOM
Image Size
1280 x 1024, 1024 x 768, 800 x 600, 640 x 480 pixels
USB SupportUSB2.0, high speed,
1 front connector, 3 rear connectors
NetworkingEthernet T10/100 connection via
Network Upgraded Kit (optional)
Trigger Support
Standard 3.5mm mini jack
(footswitch optional)
MechanicalSize: 240 x 200 x 63mm / 9.5 x 7.9 x 2.5”
Weight: 1.7kg / 3lb 12oz
EnvironmentalStorage: -40° to 85° C
Operating: -20° to 40° C
PowerAC 100-240V 50/60Hz 20W
3-prong AC jack
CertificationsCE 93/42/EEC, IEC 60601-1:2005,
ANSI/AAMI ES60601-1:2005,
CAN/CSA C22.2 No.60601-1:2008,
E361228, FCC Part 15, FDA Class 1, RoHS
Kit ContentsMediCap USB170
USB flash drive
Power cable
Video cables
User guide
The Rentals MD Difference:

Rentals MD offers the rentals you need quickly and cost-effectively. Our rentals are available in both short-term and long-term rental options with nationwide service. All of our rentals include costs of service and maintenance and even offer the ability to earn equity in your rental (rent-to-own). For more details simply give us a call or request a quote.
