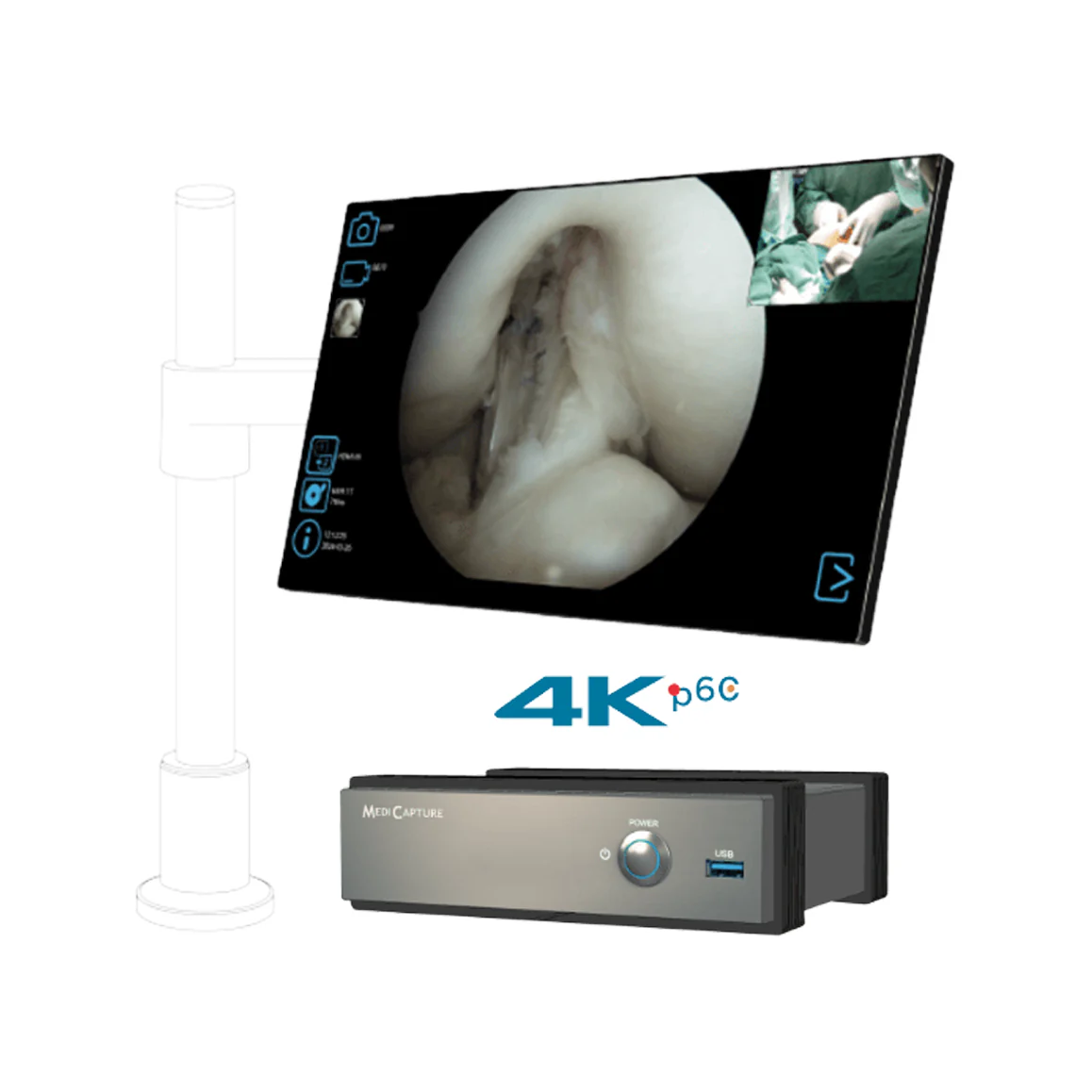

MediCapture MVR435 Medical Video/Image Recorder 4K – Compact Clinical Video Capture System
The MediCapture MVR435 is a 4K medical video recorder built for clinical imaging environments that need simple, reliable capture of surgical, endoscopic, microscopic, and procedural video. Designed to record video and still images from medical video sources, the MVR435 supports storage to internal SSD, USB media, network storage, and PACS with the optional DICOM upgrade.
With HDMI 2.0 and USB UVC input support, the MVR435 works with compatible 4K/UHD video sources, USB cameras, PTZ cameras, and USB endoscope workflows. Its compact stainless steel, fluid-resistant design makes it well suited for procedure rooms, operating rooms, endoscopy suites, and connected medical imaging environments.
Key Features of the MediCapture MVR435
4K Medical Video Recording
The MVR435 supports 4K/UHD video input resolutions up to 4096 x 2160 and 3840 x 2160 at up to 60p, helping capture high-resolution clinical video from compatible imaging systems.
HDMI and USB UVC Inputs
The recorder includes one HDMI 2.0 input and one USB input for UVC standard cameras, supporting flexible integration with medical cameras, compatible USB cameras, PTZ cameras, and USB endoscope workflows.
Multiple Storage Options
The MVR435 includes 1TB internal SSD storage and supports external USB flash or hard drives, network storage, NAS, and PACS export with the optional DICOM upgrade.
Device Manager Workflow
The built-in device manager allows users to browse and review patient files, zoom in, capture snapshots, cut video, add notes, generate PDF reports, print, and archive.
Security-Focused Design
Device security features include automatic video repair, user authentication, and log histories to help protect recorded data and support clinical documentation workflows.
Remote and Integration Control Options
The MVR435 can be controlled through camera head buttons, foot switch, API for integrators, and the MediCapture MVR Remote App. It is also designed for API-based device control and external overlay integration.
External Touchscreen Monitor Compatibility

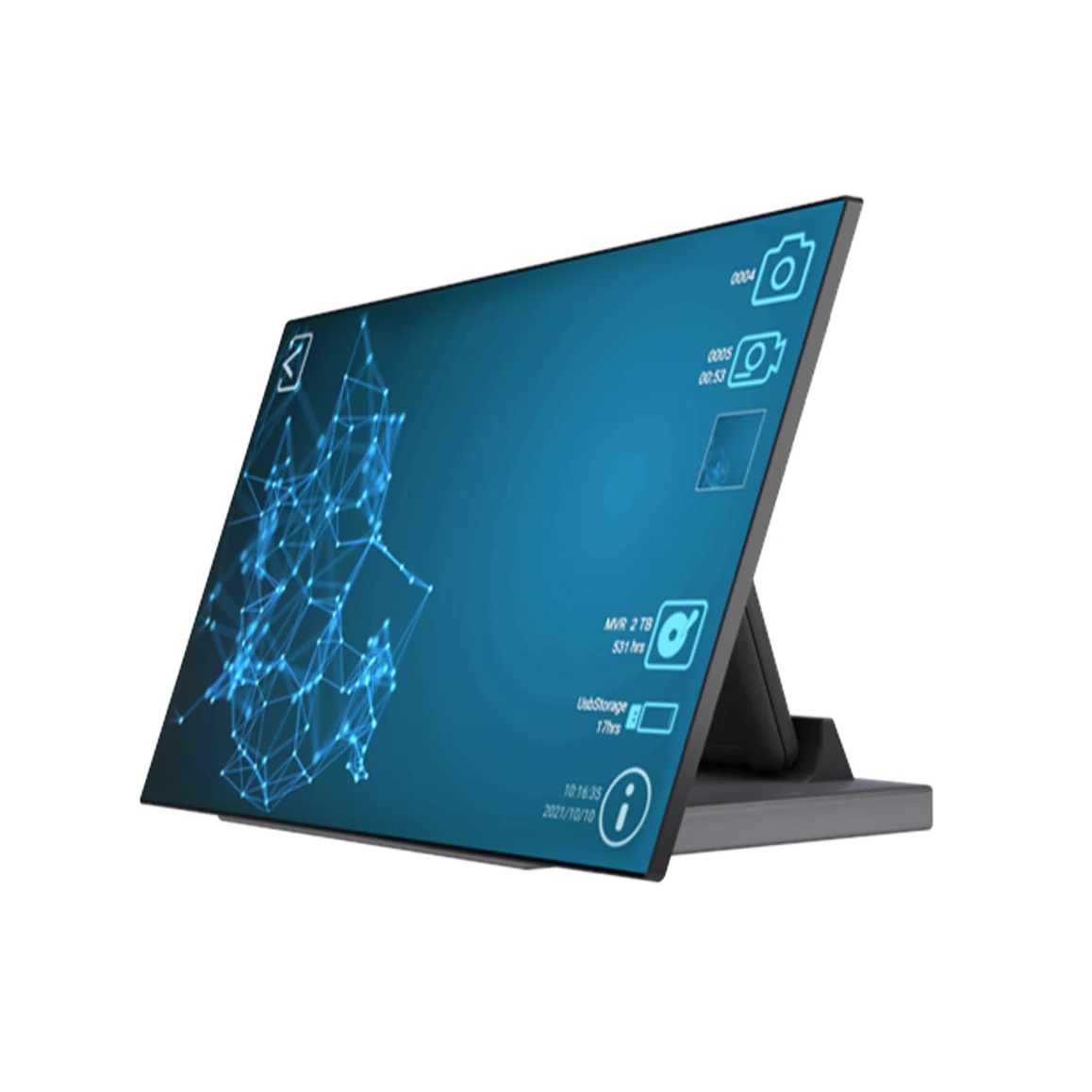

The MVR435 uses an overlay interface on an external touchscreen monitor and can be paired with the MediCapture MTS156, a 15.6" medical-grade touch screen control monitor with USB power and VESA mounting.
Compact Medical-Grade Construction
The stainless steel, fluid-resistant recorder measures 160 x 153 x 40 mm and weighs 1.7 lb, making it easy to integrate into space-conscious clinical environments.
Ideal Clinical Applications
The MediCapture MVR435 is well suited for:
- Surgical video recording
- Endoscopy documentation
- Microscopy capture
- USB camera and PTZ camera workflows
- Procedure room video documentation
- PACS/EHR-connected imaging workflows
- Clinical environments needing compact 4K recording
Why Choose the MediCapture MVR435?
The MVR435 is a strong choice for facilities that need a compact 4K medical video recorder with flexible input support, multiple storage paths, touchscreen control, security features, and optional DICOM connectivity. Its combination of 4K input support, 1TB SSD storage, USB-C display/control connectivity, and API integration makes it a versatile recorder for modern clinical imaging workflows.
Key Benefits
- 4K p60 medical video recording support
- HDMI 2.0 and USB UVC camera input
- 1TB internal SSD storage
- USB, NAS, network, and optional PACS storage
- JPG and PNG still image capture
- Stainless steel, fluid-resistant case
- External touchscreen monitor interface
- API, foot switch, camera button, and app control options
- Optional DICOM upgrade package
