MediCap USB300 Rental

  • Records still images & video in HD from medical video sources.
  • Records to USB flash drive (included) or USB hard drive (not included)
  • Image formats: JPG, TIF, PNG, DICOM
  • Video formats: H.264/MPEG-4 (1080p/i, 720p, NTSC, PAL)
  • Built in ethernet for networking to EMR
  • 1TB internal hard drive for internal video and image storage


Medicapture USB 300 Brochure


Rentals MD provides MediCap USB 300 rentals for those looking to take an analog medical device signal and record digitally. The USB300 allows you to capture both still images and HD video on to a USB stick and output it in various formats (jpeg, mpeg, dicom, tiff, etc).

If you do not need HD video capture please check out our USB200 rental and for still images only pleases check out our USB170 rental

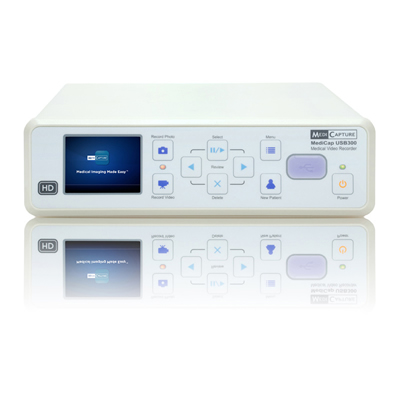

MediCap USB 300 Rental

High Definition Medical Video Recorder

The MediCap USB300 is the medical industry’s easiest, most affordable high-definition recorder. Record up to two weeks of HD video on the internal hard drive or record directly to a convenient USB flash drive. Now you can experience easy, affordable HD video without all the hassles of DVD disks.

Works with All Medical Cameras

Record high-definition video from your endoscope, arthroscope, surgical camera, ultrasound, etc. Save to an internal hard drive or external USB flash drive. Can be accessed via any computer on your network.

Intuitive Use

It’s so easy, most users never look at the manual. Just plug it in and go. You’ll be recording videos within minutes of opening the box.

Medical Grade

With its steel case and fluid resistant front panel, the MediCap is built to withstand the rigors of the OR, and it’s so compact it will fit on any cart.

Device Type HD Medical Video Recorder
Records video and still images in high
definition and standard defintion from
medical video sources
Media Records to internal hard drive,
external USB drive, or network drive
Case Rugged metal case with high-impact plastic faceplate
Monitor 2 1/2” LCD (for video confirmation only;
not for diagnosis)
Buttons Sealed membrane, fluid resistant
Video Input DVI (RGB via adapter), HD SDI, S-Video, Composite
Video Output DVI (RGB, VGA via adapter)
Video Formats H.264/MPEG-4 (1080p/i, 720p, NTSC, PAL)
Image Formats JPG, BMP, TIFF, DICOM
Networking RJ45 10/100/1000 Ethernet
Internal Storage Internal hard drive, capacity 1TB
External Media USB flash drive (included) or
USB hard drive (not included)
USB Support USB2.0, high speed,
1 front connector, 2 rear connectors
Printer Support Sony UP-DR80MD medical color printer
Trigger Support
Standard 3.5mm mini jacks
(one for photos, one for videos)
(footswitches optional)
Mechanical Size: 240 x 211 x 63mm / 9.5 x 8.3 x 2.5”
Weight: 1.8kg / 3lb 15oz
Environmental Storage: -40° to 85° C
Operating: -20° to 40° C
Power AC 100-240V 50/60Hz 25W
3-prong AC jack
Certifications CE 93/42/EEC, IEC 60601-1:2005,
ANSI/AAMI ES60601-1:2005,
CAN/CSA C22.2 No.60601-1:2008,
E361228, FCC Part 15, FDA Class 1, RoHS
Kit Contents MediCap USB300
USB flash drive
Power cable
Video cables
User guide
The Rentals MD Difference:

Rentals MD offers the rentals you need quickly and cost-effectively. Our rentals are available in both short-term and long-term rental options with nationwide service. All of our rentals include costs of service and maintenance and even offer the ability to earn equity in your rental (rent-to-own). For more details simply give us a call or request a quote.
