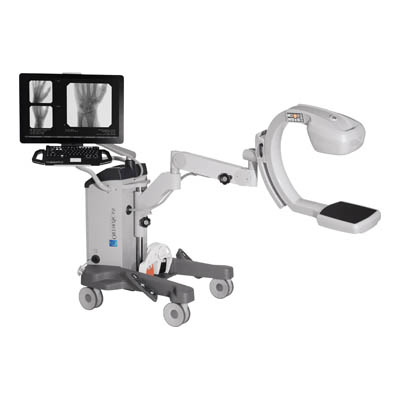

Orthoscan FD-Pulse Mini C-Arm Rental

  • kV Range: 40 – 78kVp
  • mA Range: 0.04 – 0.160mA
  • Flat Detector
  • 1.5 k x 1.5  Image Resolution
  • 15.0 cm x 15.0 cm Field Of View

Brochures:

Orthoscan FD Pulse Mini C-Arm Brochure

Description

Orthoscan FD-Pulse Mini C-Arm Rental

OrthoScan, the market leader in mini c-arm imaging, introduces FD Pulse — the first and only mini c-arm with pulsed fluoroscopy. FD Pulse provides dose reduction with state-of-the-art image quality. The square-shaped CMOS flat detector provides the greatest field of view, enabling the user to see more anatomy. This flat detector design and compact form factor allows optimal positioning in the surgical environment. Surgical lights on the undersurface of the x-ray source reduce shadows by providing primary light in the surgical field, illuminating anatomical detail.

Advanced Touchscreen Interface

The advanced OrthoTouch™ user interface allows seamless operation of system controls while still allowing for keyboard functions. OrthoTouch™ provides a familiar experience — similar to a smartphone or tablet — that enhances interaction while viewing detailed anatomy.

24″ High Resolution Monitor

With FD Pulse, the 24″ high resolution diagnostic widescreen monitor allows for a 20% larger viewing area. The 1920 x 1200 resolution provides exceptional image quality showing fine details of relevant anatomy and a wider viewing angle for increased visibility.

Reduced Dose

Moving from continuous fluoroscopy to a pulsed fluoroscopy of 30 pulses per second (pps), OrthoScan is able to reduce the dose without loss of image quality or detail. Selectable pulses per second — between 30, 15, 7.5, and 2 pps — allow the user to reduce the dose depending upon their imaging needs.

Largest Flat Detector on a Mini

A larger detector provides the greatest field of view, enabling the user to see more anatomy. FD Pulse has the largest flat detector on a mini and the square shape negates the need for a rotating detector, increasing the reliability over time.

Over-Rotation

The OrthoScan mini c-arm design allows for an orbital rotation of 150°. This enables the user to take advantage of the larger field of view without making mechanical adjustments required by competitive equipment. The increased orbital movement enables preferred views without stressing anatomy.

Flat-Form Detector

Flat detectors provide increased image quality, improved reliability, a smaller footprint, and more efficient imaging when compared to older image intensifier technology. The FD Pulse utilizes the thinnest flat detector housing on the market, allowing the user to place the detector directly on the operating surface and leave the c-arm in the field to reduce OR time and decrease sterility risks.

Surgical LED Lights

Located on the bottom of the tube head, these surgical lights provide additional illumination on the anatomy and eliminate shadows cast from the C.

Bilateral Sterile Field Controls

Conveniently located on each side of the tube head assembly, bilateral controls provide easy access to imaging and documentation in the sterile field.

The Rentals MD Difference:

Rentals MD offers the rentals you need quickly and cost-effectively. Our rentals are available in both short-term and long-term rental options with nationwide service. All of our rentals include costs of service and maintenance and even offer the ability to earn equity in your rental (rent-to-own). For more details simply give us a call or request a quote.

Product Specifications

DETECTOR

  • Detector Resolution: 1.5 k x 1.5 k
  • Detector Size: 15.0 cm x 15.0 cm
  • Useful Array: 15.0 cm x 15.0 cm
  • Pixel Spacing: 99 microns
  • Dose Rate: AKR, DAP

X-RAY MONOBLOCK

  • Focal Spot:42.5 microns
  • Selectable Pulse Rate: Cont / 30 pps / 15 pps / 7.5 pps / 2 pps
  • kV Range: 40 – 78 kVp
  • mA Range: 0.04 – 0.160 mA

DOCUMENTATION

  • Wireless Communication: Capable
  • DICOM 3.0 Compliant: Yes
  • MPPS: Capable
  • Image Capacity: 12,000
  • Video Capacity: 90 min
  • EMR Image Link: Capable
  • Cine Loop Export: Yes
  • USB 2.0 Ports: 2
  • Printer Options: 2

C-ARM

  • Free Space: 13.8″
  • Arc Depth: 19″
  • Pivot: 430°
  • Lateral Rotate (Wig-Wag): 320°
  • Orbital Rotate: 150°
  • Vertical Range: 34″
  • Distance to Cabinet: max 68″
  • Distance to Wheel Base: max 45″

IMAGING

  • Surgical LED Lights: Yes
  • Sterile Field Controls: Bilateral
  • Start Up Time: ~50 sec
  • Temporary Image Hold: 512 images
  • Cine Loop Frame Rate: 30 fps
  • Snapshot Capabilities: Yes
  • Edge Enhancement: Yes
  • Post Process Brightness/Contrast: Yes
  • Adaptive Noise Suppression: Automatic
  • Manual Noise Suppression: 4 Modes
  • Laser Alignment: Yes
  • Multifunction Wireless Foot Switch: Yes

DISPLAY

  • Monitor: 24″ LCD
  • Primary “Live” Image:12.0″ x 12.0″
  • Dual Reference Images:5.0″ x 5.0″
  • Built-in DICOM Calibration: Yes
  • Extendible Monitor Arm: Yes – 27″
  • Left/Right Arm Swivel: Yes
  • Height Adjustable Arm: Yes
  • Monitor Handles: Yes
  • Video Output: Yes
  • Monitor Brightness: 350 cd/m2
  • Touchscreen: Yes

SOFTWARE

  • Operating System:Windows 8.1 Embedded

DIMENSIONS

  • Weight: 400 lb
  • Height: 44.5″
  • Footprint: 28″ x 33″

Additional information

Brand

Orthoscan

Model

FD-Pulse

C-Arm Size

Mini – 1pc – C on Monitor Cart
