- Exceptional Image Quality
- Stationary Anode X-Ray Tube
- Digital CCD Camera
- LED Lit Flat Panel Monitors
- 6″ 9″ and 12″ Image Intensifier Options
Brochures:
Ziehm Vista C-Arm Brochure | Ziehm Vista C-Arm Technical Brochure
Ziehm Vista C-Arm Rental
Description

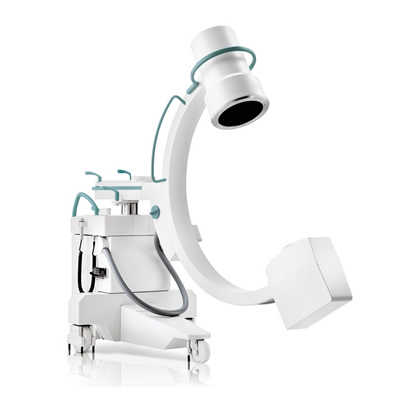

Ziehm Vista C-Arm Rental
The Ziehm Vista C-Arm system is an ideal entry-level system for pain management and orthopedics with light to medium caseload. Its stationary anode x-ray tube and high-resolution CCD camera offer excellent image quality all a low cost in the c-arm pricing spectrum.
The Rentals MD Difference:
Rentals MD offers the rentals you need quickly and cost-effectively. Our rentals are available in both short-term and long-term rental options with nationwide service. All of our rentals include costs of service and maintenance and even offer the ability to earn equity in your rental (rent-to-own). For more details simply give us a call or request a quote.
Product Specifications
C-ARM
X-Ray Generator
- X-ray tube: stationary anode
- Dual focus: 05/1.5mm
- Generator type:
-20 kHz high frequency
-Microprocessor-controlled
Operating Values:
- Nominal output (100 kV): 2,000 W
- Maximum output: 2,200 W
- Fluoroscopy:
-kV range: 40-110 kV
-mA range: 0.2.-6 mA - Digital radiography (snap shot):
-kV range: 40-110 kV
-mA: up to 8 mA - Radiography:
-kV range: 40-110 kV
-mA: up to 20 mA
Output:
- Pulsed fluoroscopy: 660 W (max)
- Digital radiography (snap shot): 880 W
- Tube housing heat capacity:
-800 kJ
-.14 million HU - Option:
-with water cooling (Active Cooling) 3,500 kJ
-equivalent to 5 million HU
-system cooling rate: 32 kHU/min
-continuous fluoroscopy: 400 W
Filtering:
- Total filtering: > 4 mm Al equivalent
- Additional filtering: 0.06 mm Cu
Collimator System:
- Collimator rotation: /- 90 Degrees
- Iris collimator:
-9″ II – 50-230 mm diameter
-12″ II – 50-310 mm diameter - Virtual collimation without radiation
Image Intensifer
- Type: cesium iodide
- DQE (IEC): 65%
- Conversion factor: 240 Cd
- Anti-scatter grid: Pb 8/40
6″ Image Intensifer:
- Central resolution 6″/4″
- Contrast Ratio: 20:1
9″ Image Intensifier:
- Central resolution 9″/6″/4″
- Contrast Ratio: 30:1
12″ Image Intensifier:
- Central resolution: 12″/9″ /6″
- Contrast Ratio: 22:1
Digital Video Chain
Digital Video Camera:
- Active pixels: 442,00
- Camera matrix: 768 x 576 pixels
- Bandwidth of video signal: 7.5 MHz
- Bandwidth of video amplifier: 25 MHz
- Video: CCIR / 625 lines
- Signal-to-noise ratio: 60 dB
- Control: ADR / AVR
Dimensions & Mechanics:
- Motor-driven vertical travel: 43cm (6″ and 9″ II) 63 cm (12″ II)
- Horizontal travel: 22 cm
- Orbital rotation:
-90 Degrees / 45 Degrees (9″ II) 25 Degrees (12″ II) - Angulation: /- 225 Degrees
- Swiveling (panning): /- 10 Degrees
- Source/image receptor distance: 97 cm
- C-Arm vertical free space: 76 cm
- C-Arm depth: 68 cm
- Width: 80 cm
- Length: 160 cm (9″ II) / 182 cm (12″ II)
- Height: 170 cm (9″ II) / 214 cm (12″ II)
Brakes:
- Patented steering & braking lever, with parallel movement of the mobile stand in all directions
MONITOR CART
Digital Image Processing
Real-Time Processing Functions:
- Recursive filter: 4 levels
- Stack filter (Last Image Hold): 5 levels
- Edge enhancement filer: 5 levels
- Windowing and step windowing
- Digital image rotation and reversal without radiation
DSA Package (option):
- DSA real-time subtraction with re-masking capability
- MSA max. opacification sequence
- RSA roadmapping
- Pixel shift / landmarking
- Digtial measurement functions (distance/angle)
Cine Loop (Option):
- Sequential image storage and display
-1-8 frames/s
-12.5 and 25 frames/s (optional) - Cine loops start, stop and replay rate controls
CO2 Package (option):
- Automatic image optimization when using negative contrast medium in DSA modes
Postprocessing Functions:
- Edge enhancement: 5 levels
- Zoom: 7 levels
- Image rotation
- Windowing
- Grayscale inversion
Digital Memory:
- Storage capacity: up to 1,000 images
-option: 5,000 images - Memory matrix: 1024 x 512 pixels
- Image matrix: 576 x 576 pixels
- Digital image processing: up to 16 bit
Data Organization:
- Patient-based data management with 16-image mosaic display
Monitors
- Super-high-resolution and high-brightness twin flat-screen monitors
-screen size: 18.1″ (46 cm)
-native resolution: 1280 x 1024 pixels
-viewing angle (horizontal & vertical): 170 Degrees
-contrast ratio: 800:1
-Dimensions: 41 x 34 x 7 cm
Archiving
- Video printer (optional): paper and film
- 3.5″ floppy disk
-storage capacity: 4 images
-formats: DICOM, TIFF - CD ROM
-storage capacity: 1,000 images
-formats: DICOM, TIFF - USB Mediacapture Device (3rd party add-on)
Networking:
- Ziehm NetPro (optional):
DICOM 3.0 interface (RJ45 or WLAN connection) for digital network integration - “Primary Capture” mode
- Available DICOM Classes:
-Storage class incl. multiframe capability and storage commitment
-Print class
-Media class
-Worklist class incl. modality performed procedure step (MPPS)
-Query/retrieve class
-Verification class
Options
- Active Cooling for almost unlimited operation time
- Ziehm Vista Endo
-color monitor - Video cassette recorder, S-VHS system with automatic recording control
- Laser positioning device mounted on image intensifier and/or generator
- Dose area product with digital display
- Security key switch
- Connection for external radiation warning lamp
- Handrail around the image intensifier
Weight
- C-Arm mobile stand: 286 kg
- Monitor cart: 177 kg
Additional information
| Brand | Ziehm |
|---|---|
| Model | Vista |
| C-Arm Size | Full Size – 2pc C-Arm & Monitor Cart |
